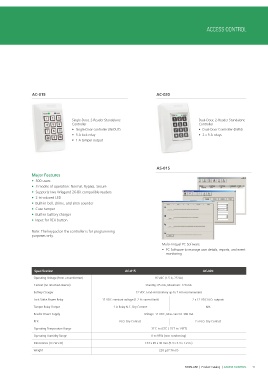

Page 18 - Rosslare Acces Control 2014

ACCESS CONTROL

AC-015 AC-020

Single-Door, 2-Reader Standalone Dual-Door, 2-Reader Standalone
Controller Controller

• Single-Door controller (IN/OUT) • Dual-Door Controller (IN/IN)

• 5 A lock relay • 2 x 5 A relays

• 1 A tamper output

Major Features AS-015
• 500 users
• 3 modes of operation: Normal, Bypass, Secure Multi-Lingual PC Software
• Supports two Wiegand 26-Bit compatible readers • PC Software to manage user details, reports, and event
• 2 tri-colored LED
• Built-in bell, chime, and siren sounder monitoring
• Case tamper
• Built-in battery charger
• Input for REX button

Note: The keypad on the controller is for programming
purposes only.

Specification AC-015 AC-020
Operating Voltage (from a transformer)
Current (no attached devices) 16 VAC (1.5 A, 25 VA)
Battery Charger
Lock Strike Power Relay Standby: 65 mA, Maximum: 120 mA
Tamper Relay Output
Reader Power Supply 12 VDC Lead-Acid battery up to 7 AH recommended
REX
Operating Temperature Range 12 VDC constant voltage (1.2 A current limit) 2 x 12 VDC N.O. outputs
Operating Humidity Range
Dimensions (H x W x D) 1 A Relay N.C. Dry Contact N/A
Weight
Voltage: 12 VDC, Max current: 300 mA

N.O. Dry Contact 2 x N.O. Dry Contact

-31˚C to 63˚C (-25˚F to 145˚F)

0 to 95% (non-condensing)

134 x 85 x 30 mm (5.3 x 3.4 x 1.2 in.)

220 g (7.76 oz)

ROSSLARE | Product Catalog | ACCESS CONTROL 17
