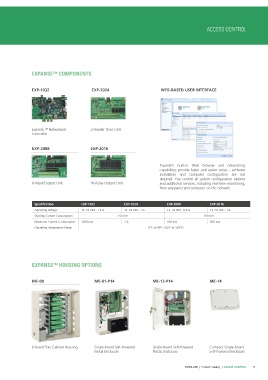

Page 14 - Rosslare Acces Control 2014

ACCESS CONTROL
EXPANSE™ COMPONENTS
EXP-1032
ExpansE™ Networked
Controller
EXP-2088
8-Input/Output Unit
Specification
Operating Voltage
Standby Current Consumption
Maximum Current Consumption
Operating Temperature Range
EXPANSE™ HOUSING OPTIONS
ME-00
9-Board Tray Cabinet Housing Single-Board Self-Powered
EXP-2024 WEB-BASED USER INTERFACE
2-Reader Door Unit
EXP-2016
16-Relay Output Unit ExpansE’s built-in Web browser and networking
capabilities provide faster and easier setup – software
installation and computer configuration are not
required. You control all system configuration options
and additional services, including real-time monitoring,
from any panel and computer on the network.
EXP-1032 EXP-2024 EXP-2088 EXP-2016
12–16 VDC, 1.5 A 12–16 VDC, 1 A
12–16 VDC, 1 A 12–16 VDC, 0.5 A 100 mA
1200 mA 800 mA
150 mA
1 A 500 mA
0°C to 49°C (32°F to 120°F)
ME-01-P14 ME-12-P14 ME-14
Single-Board Self-Powered Compact Single-Board
M etal Enclosure Plastic Enclosure Self-Powered Enclosure
