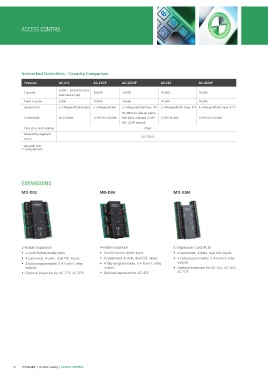

Page 11 - Rosslare Acces Control 2014

ESS CONTROL

Networked Controllers – Capacity Comparison

Features AC-215 AC-215IP AC-225/IP AC-525 AC-425/IP

Capacity 5,000 + 20,000 (Time & 30,000 30,000 30,000 30,000
Attendance only)
Event Log Size
Reader Ports 5,000 20,000 20,000 20,000 20,000

Connectivity 2 x Wiegand/C&D/others 2 x Wiegand/C&D 2 x Wiegand/C&D (max. 4*) 2 x Wiegand/C&D (max. 4*) 4 x Wiegand/C&D (max. 8**)

Time Zone and Holidays RS-232/485 TCP/IP, RS-232/485 RS-485/232, dial-up (using TCP/IP, RS-485 TCP/IP, RS-232/485
Networking Segment MD-N33), onboard TCP/IP
(max.) (AC-225IP version)

32/64

32 (1023)

* Using MD-D02
** Using MD-D04

EXPANSIONS MD-D04 MD-IO84

MD-D02

2-Reader Expansion 4-Reader Expansion IO Expansion Card (PCB)
• 2 multi-format reader ports
• 4 multi-format reader ports • 8 supervised, 4-state, dual EOL inputs
• 4 supervised, 4-state, dual EOL inputs
• 4 supervised, 4-state, dual EOL inputs • 4 fully-programmable, 5 A Form-C relay
• 4 fully-programmable, 5 A Form-C relay outputs
outputs • 4 fully-programmable, 5 A Form-C relay
outputs • Optional expansion for AC-225, AC-425,
• Optional expansion for AC-225, AC-525 AC-525
• Optional expansion for AC-425

10 ROSSLARE | Product Catalog | ACCESS CONTROL
