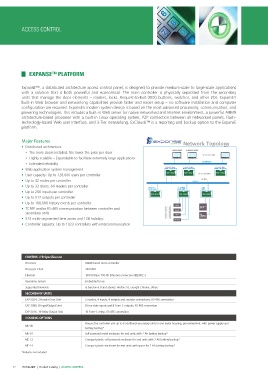

ESS CONTROL
EXPANSETM PLATFORM
ExpansE™, a distributed architecture access control panel, is designed to provide medium-scale to large-scale applications
with a solution that is both powerful and economical. The main controller is physically separated from the secondary
units that manage the door elements – readers, locks, Request-to-Exit (REX) buttons, switches, and other I/Os. ExpansE’s
built-in Web browser and networking capabilities provide faster and easier setup – no software installation and computer
configuration are required. ExpansE’s modern system design is based on the most advanced processing, communication, and
powering technologies. This includes a built-in Web server for native networked and Internet environment, a powerful ARM9
architecture-based processor with a built-in Linux operating system, P2P connection between all networked panels, Flash-
technology-based Web user interface, and 3-Tier networking. ExClouds™ is a reporting and backup option to the ExpansE
platform.
Major Features Network Topology
• Distributed architecture
BACKUP CLIENT OPERATOR CLIENTS
• The more doors installed, the lower the price per door
• Highly scalable – Expandable to facilitate extremely large applications UP TO 256 CLIENTS
• Extended reliability
• Web application system management LAN NETWORK
• User capacity: Up to 128,000 users per controller
• Up to 32 nodes per controller MAIN CONTROLLER MAIN CONTROLLER UP TO 256 PANELS MAIN CONTROLLER
• Up to 32 doors, 64 readers per controller
• Up to 256 inputs per controller EXP-1032 EXP-1032 EXP-1032
• Up to 512 outputs per controller
• Up to 100,000 history events per controller ETHERNET RS-485
• TCP/IP and/or RS-485 communication between controller and
secondary units 1O6U-TRPEULTAYUNIT D2O-ORREAUDNEITR 8UNI/IOT
• 512 multi-segmented time zones and 128 holidays EXP-2016 EXP-2024 EXP-2088
• Controller capacity: Up to 1023 controllers with intercommunication
LOCK 4IN-SPTUATTE
D.SW F5OARM-C
REX
READER OUTPUT
CONTROLLER Specification ARM9 based micro-controller
Processor 240 MHz
Processor Clock 10/100 Base T RJ-45 Ethernet connection IEEE802.3
Ethernet Embedded Linux
Operating System IE (version 6.0 and above), Firefox 3.0, Google Chrome, others
Supported Browsers
SECONDARY UNITS 2 readers, 4 inputs, 4 outputs and sounder connections, RS-485 connection
EXP-2024, 2-Reader Door Unit 8 four-state inputs and 8 Form-C outputs, RS-485 connection
EXP-2088, 8-Input/Output Unit 16 Form-C relays, RS-485 connection
EXP-2016, 16-Relay Output Unit
HOUSING OPTIONS Houses the controller and up to 8 additional secondary units in one metal housing, pre-networked, with power supply and
battery backup*
ME-00 Self-powered metal enclosure for end units with 7 Ah battery backup*
Compact plastic self-powered enclosure for end units with 7 Ah battery backup*
ME-01 Compact plastic enclosure for end units with space for 2 Ah battery backup*
ME-12
ME-14
*Batteries not included
