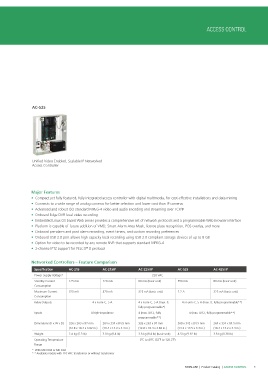

P. 10
ACCESS CONTROL
AC-525
Unified Video Enabled, Scalable IP Networked
Access Controller
Major Features
• Compact yet fully featured, fully integrated access controller with digital multimedia, for cost-effective installations and data mining
• Connects to a wide range of analog cameras for better selection and lower cost than IP cameras
• Advanced and robust ISO standard MPEG-4 video and audio encoding and streaming over TCP/IP
• Onboard Edge DVR local video recording
• Embedded Linux OS based Web server provides a comprehensive set of network protocols and a programmable Web browser interface
• Platform is capable of future addition of VMD, Smart Alarm Area Mask, license plate recognition, POS overlay, and more
• Onboard pre-alarm and post alarm recording, event timers, and custom recording preferences
• Onboard USB 2.0 port allows high capacity local recording using USB 2.0 compliant storage devices of up to 8 GB
• Option for video to be recorded by any remote NVR that supports standard MPEG-4
• 2-channel PTZ support for PELCO® D protocol
Networked Controllers – Feature Comparison
Specification AC-215 AC-215IP AC-225/IP AC-525 AC-425/IP
Power Supply Voltage* 125 mA 120 mA 220 VAC 550 mA 80 mA (basic unit)
Standby Current 325 mA 370 mA
Consumption 4 x Form-C, 5 A 80 mA (basic unit)
Maximum Current
Consumption 325 mA (basic unit) 2.2 A 325 mA (basic unit)
Relay Outputs
4 x Form-C, 5 A (max. 8, 4 x Form-C, 5 A (max. 8, fully programmable**)
fully programmable*)
Inputs 4 high-impedance 4 (max. 8/12, fully 4 (max. 8/12, fully programmable**)
programmable**)
Dimensions (H x W x D) 326 x 263 x 97 mm 264 x 334 x 84.5 mm 326 x 263 x 97 mm 360 x 342 x 84.5 mm 264 x 334 x 84.5 mm
(12.8 x 10.4 x 3.82 in.) (10.4 x 13.2 x 3.4 in.) (12.8 x 10.4 x 3.82 in.) (14.2 x 13.5 x 3.4 in.) (10.4 x 13.2 x 3.4 in.)
Weight 2.4 kg (5.3 lb) 3.8 kg (8.4 lb) 3.8 kg (8.4 lb) (basic unit) 4.5 kg (9.92 lb) 3.8 kg (8.38 lb)
Operating Temperature 0°C to 49°C (32°F to 120.2°F)
Range
* With MD-IO84 or MD-D02
* * Available models with 110 VAC transformer or without transformer
ROSSLARE | Product Catalog | ACCESS CONTROL 9
