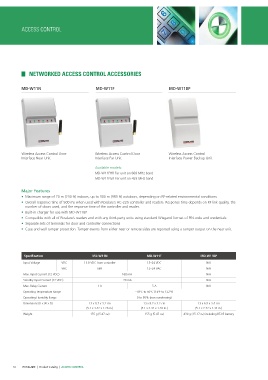

Page 15 - Rosslare Acces Control 2014
P. 15
ESS CONTROL
NETWORKED ACCESS CONTROL ACCESSORIES
MD-W11N MD-W11F MD-W11BP
Wireless Access Control Door Wireless Access Control Door Wireless Access Control
Interface Near Unit Interface Far Unit Interface Power Backup Unit
Available models:
MD-W11FHR Far unit on 868 MHz band
MD-W11FGR Far unit on 433 MHz band
Major Features
• Maximum range of 70 m (230 ft) indoors, up to 300 m (985 ft) outdoors, depending on RF-related environmental conditions
• Overall response time of 500 ms when used with Rosslare’s AC-225 controller and readers. Response time depends on RF link quality, the
number of doors used, and the response time of the controller and reader.
• Built-in charger for use with MD-W11BP
• Compatible with all of Rosslare’s readers and with any third-party units using standard Wiegand format of PIN code and credentials
• Separate sets of terminals for door and controller connections
• Case and wall tamper protection. Tamper events from either near or remote sides are reported using a tamper output on the near unit.
Specification MD-W11N MD-W11F MD-W11BP
13.8 VDC from controller N/A
Input Voltage VDC 15–24 VDC N/A
N/A 12–24 VAC N/A
VAC 160 mA N/A
1A 70 mA N/A
Max. Input Current (12 VDC)
13 x 8.7 x 3.2 cm 5A 13 x 6.9 x 3.4 cm
Standby Input Current (12 VDC) (5.1 x 3.42 x 1.26 in.) -10°C to 50°C (14°F to 122°F) (5.1 x 2.72 x 1.34 in.)
430 g (15.17 oz) including BT-05 battery
Max. Relay Current 155 g (5.47 oz) 0 to 95% (non-condensing)
13 x 8.7 x 3.2 cm
Operating Temperature Range
(5.1 x 3.42 x 1.26 in.)
Operating Humidity Range 155 g (5.47 oz)
Dimensions (H x W x D)
Weight
14 ROSSLARE | Product Catalog | ACCESS CONTROL
