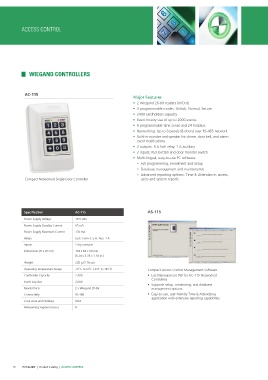

Page 17 - Rosslare Acces Control 2014
P. 17
ESS CONTROL
WIEGAND CONTROLLERS Major Features
• 2 Wiegand 26-Bit readers (In/Out)
AC-115 • 3 programmable modes: Unlock, Normal, Secure
• 2400 cardholders capacity
Compact Networked Single-Door Controller • Event history size of up to 2000 events
• 8 programmable time zones and 24 holidays
• Networking: Up to 8 panels (8 doors) over RS-485 network
• Built-in sounder and speaker for chime, door bell, and alarm
event notifications
• 2 outputs: 5 A lock relay, 1 A auxiliary
• 2 inputs: REX button and door monitor switch
• Multi-lingual, easy-to-use PC software
• Full programming, enrollment and setup
• Database management and maintenance
• Advanced reporting options: Time & Attendance, access,
users and system reports
Specification AC-115 AS-115
Power Supply Voltage 16.5 VAC
Power Supply Standby Current 65 mA Compact Access Control Management Software
Power Supply Maximum Current 120 mA • Lite Management SW for AC-115 Networked
Relays Lock: Form-C 5 A, Aux: 1 A
Inputs 2 dry contacts Controllers
Dimensions (H x W x D) 134 x 85 x 30 mm • Supports setup, monitoring, and database
(5.28 x 3.35 x 1.18 in.)
Weight 220 g (7.76 oz) management options
Operating Temperature Range -31˚C to 63˚C (-25˚F to 145˚F) • Easy-to-use, user-friendly Time & Attendance
Cardholder Capacity 2,400
Event Log Size 2,000 application with extensive reporting capabilities
Reader Ports 2 x Wiegand 26-Bit
Connectivity RS-485
Time Zone and Holidays 8/24
Networking Segment (max.) 8
16 ROSSLARE | Product Catalog | ACCESS CONTROL
