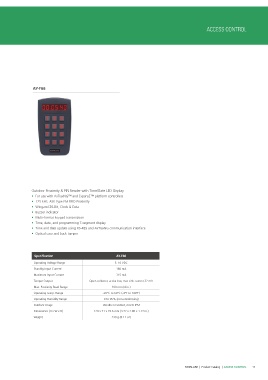

Page 16 - Rosslare Acces Control 2014
P. 16
ACCESS CONTROL
AY-F66
Outdoor Proximity & PIN Reader with Time/Date LED Display
• For use with AxTraxNG™ and ExpansE™ platform controllers
• 125 kHz, ASK type EM RFID Proximity
• Wiegand 26-Bit, Clock & Data
• Buzzer indicator
• Multi-format keypad transmission
• Time, date, and programming 7-segment display
• Time and date update using RS-485 and AxTraxNG communication interface
• Optical case and back tamper
Specification AY-F66
Operating Voltage Range 5–16 VDC
Standby Input Current 180 mA
Maximum Input Current 315 mA
Tamper Output Open collector, active low, max sink current 32 mA
Max. Proximity Read Range 100 mm (4 in.)
Operating Temp. Range -20°C to 60°C (-4°F to 140°F)
Operating Humidity Range 0 to 95% (non-condensing)
Outdoor Usage Weather-resistant, meets IP54
Dimensions (H x W x D) 120 x 71 x 29.6 mm (4.72 x 2.80 x 1.17 in.)
Weight 230 g (8.11 oz)
ROSSLARE | Product Catalog | ACCESS CONTROL 15
