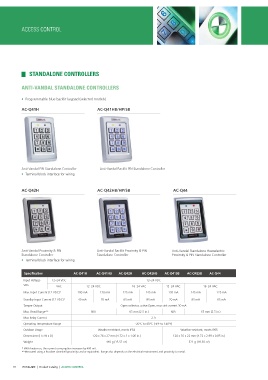

Page 19 - Rosslare Acces Control 2014

ESS CONTROL

STANDALONE CONTROLLERS

ANTI-VANDAL STANDALONE CONTROLLERS

• Programmable blue backlit keypad (selected models)

AC-Q41H AC-Q41HB/HP/SB

Anti-Vandal PIN Standalone Controller Anti-Vandal Backlit PIN Standalone Controller
• Terminal block interface for wiring
AC-Q42HB/HP/SB AC-Q44
AC-Q42H

Anti-Vandal Proximity & PIN Anti-Vandal Backlit Proximity & PIN Anti-Vandal Standalone Piezoelectric
Standalone Controller Standalone Controller Proximity & PIN Standalone Controller

• Terminal block interface for wiring

Specification AC-Q41H AC-Q41HB AC-Q42H AC-Q42HB AC-Q41SB AC-Q42SB AC-Q44

Input Voltage 12–24 VDC 12–24 VDC
VDC VAC
12–24 VDC 16–24 VAC 12–24 VAC 16–24 VAC
130 mA
Max. Input Current (12 VDC)* 100 mA 130 mA 125 mA 145 mA 145 mA 125 mA

Standby Input Current (12 VDC)* 40 mA 70 mA 65 mA 85 mA 70 mA 85 mA 65 mA
Tamper Output
Max. Read Range** Open collector, active Open, max sink current 30 mA
Max Relay Current
Operating Temperature Range N/A 65 mm (2.5 in.) N/A 65 mm (2.5 in.)
Outdoor Usage
Dimensions (H x W x D) 2A
Weight
-20°C to 60°C (-4°F to 140°F)

Weather-resistant, meets IP54 Weather-resistant, meets IP65

120 x 76 x 27 mm (4.72 x 3 x 1.06 in.) 120 x 76 x 22 mm (4.72 x 2.99 x 0.85 in.)

440 g (15.52 oz) 521 g (18.38 oz)

* With heater on, the current consumption increases by 480 mA.
**Measured using a Rosslare clamshell proximity card or equivalent. Range also depends on the electrical environment and proximity to metal.

18 ROSSLARE | Product Catalog | ACCESS CONTROL
