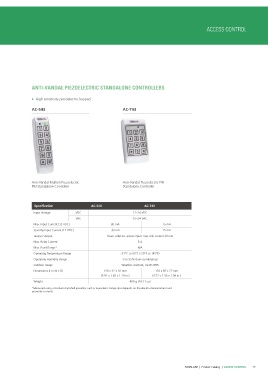

ACCESS CONTROL
ANTI-VANDAL PIEZOELECTRIC STANDALONE CONTROLLERS
• High sensitivity piezoelectric keypad AC-T43
AC-S43
Anti-Vandal Mullion Piezoelectric Anti-Vandal Piezoelectric PIN
PIN Standalone Controller Standalone Controller
Specification AC-S43 AC-T43
Input Voltage VDC 12–24 VDC
VAC 16–24 VAC
Max. Input Current (12 VDC) 80 mA 75 mA
Standby Input Current (12 VDC) 33 mA 15 mA
Tamper Output Open collector, active Open, max sink current 20 mA
Max. Relay Current 5A
Max. Read Range* N/A
Operating Temperature Range -31°C to 63°C (-25°F to 145°F)
Operating Humidity Range 0 to 95% (non-condensing)
Outdoor Usage Weather-resistant, meets IP65
Dimensions (H x W x D) 150 x 42 x 28 mm 120 x 65 x 27 mm
(5.91 x 1.65 x 1.10 in.) (4.72 x 2.56 x 1.06 in.)
Weight 400 g (14.11 oz)
*Measured using a Rosslare clamshell proximity card or equivalent. Range also depends on the electrical environment and
proximity to metal.
ROSSLARE | Product Catalog | ACCESS CONTROL 19
