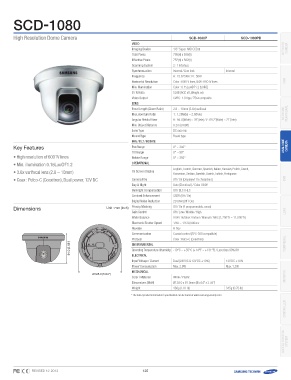

Page 125 - Catalog Samsung 2014
P. 125
-1080
High Resolution Dome Camera SCD-1080P SCD-1080PD
Video NETWORK
Camera
Imaging Device 1/3" Super HAD CCD II
Total Pixels 795(H) x 596(V)
Effective Pixels 752(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock Internal
Frequency H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 600TV lines, B/W : 650TV lines NVR
Min. Illumination Color : 0.15Lux@F1.2 (50IRE)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 2.8 ~ 10mm (3.6x) varifocal NETWORK
PERIPHERAL
Max. Aperture Ratio 1 : 1.2(Wide) ~ 2.8(Tele)
Angular Field of View H : 94.4˚(Wide) ~ 28˚(Tele) / V : 69.2˚(Wide) ~ 21˚(Tele)
Min. Object Distance 0.2m (0.66ft)
Lens Type DC auto iris
Mount Type Board type
Pan / Tilt / Rotate Analogue
Camera
Key Features Pan Range 0° ~ 350°
• High resolution of 600TV lines Tilt Range 0° ~ 90°
• Min. illumination 0.15Lux@F1.2
• 3.6x varifocal lens (2.8 ~ 10mm) Rotate Range 0° ~ 355°
• Coax : Pelco-C (Coaxitron), Dual power, 12V DC
Operational
On Screen Display English, French, German, Spanish, Italian, Russian, Polish, Czech,
Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
Camera Title Off / On (Displayed 15 characters) DVR
Day & Night Auto (Electrical ) / Color / B/W
Backlight Compensation Off / BLC / HLC
Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction 2D DNR (Off / On)
Dimensions Unit : mm (inch) Privacy Masking Off / On (4 programmable zones) LENS
Gain Control Off / Low / Middle / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Electronic Shutter Speed 1/50 ~ 1/120,000sec
Reverse H-Rev
Communication Coaxial control (SPC-300 compatible)
9911..00 ((33..5588")") Protocol Coax : Pelco-C (Coaxitron) PERIPHERAL
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10%) 12V DC ±10%
Power Consumption Max. 2.8W Max. 1.2W
ØØ112288..00 ((55..0044"")) Mechanical MONITOR
Color / Material White / Plastic
Dimensions (WxH) Ø128.0 x 91.0mm (Ø5.04" x 3.58")
Weight 460g (1.01 lb) 345g (0.76 lb)
