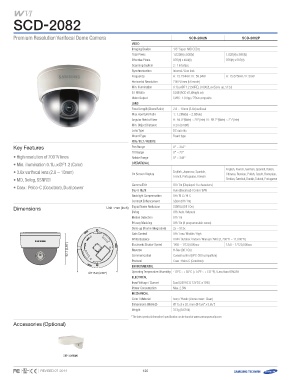

Page 120 - Catalog Samsung 2014
P. 120
-2082
Premium Resolution Varifocal Dome Camera SCD-2082N SCD-2082P
Video 1/3" Super HAD CCD II 1,020(H) x 596(V)
Imaging Device 1,020(H) x 508(V) 976(H) x 582(V)
Total Pixels 976(H) x 494(V)
Effective Pixels 2 : 1 Interlace
Scanning System
Synchronization Internal / Line lock H : 15.625KHz / V : 50Hz
Frequency H : 15.734KHz / V : 59.94Hz
Horizontal Resolution 700TV lines (ER mode)
Min. Illumination 0.1Lux@F1.2 (50IRE), 0.0002Lux (Sens-up, 512x)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 2.8 ~ 10mm (3.6x) varifocal
Max. Aperture Ratio 1 : 1.2(Wide) ~ 2.8(Tele)
Angular Field of View H : 94.4°(Wide) ~ 28°(Tele) / V : 69.2°(Wide) ~ 21°(Tele)
Min. Object Distance 0.2m (0.66ft)
Lens Type DC auto iris
Key Features Mount Type Board type
• High resolution of 700TV lines Pan / Tilt / Rotate 0° ~ 352°
• Min. illumination 0.1Lux@F1.2 (Color) Pan Range
• 3.6x varifocal lens (2.8 ~ 10mm)
• MD, Defog, SSNRIII Tilt Range 0° ~ 73°
• Coax : Pelco-C (Coaxitron), Dual power Rotate Range 0° ~ 348°
Dimensions Operational
On Screen Display English, Japanese, Spanish, English, French, German, Spanish, Italian,
French, Portuguese, Korean Chinese, Russian, Polish, Czech, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese
Camera Title Off / On (Displayed 15 characters)
Day & Night Auto (Electrical) / Color / B/W
9 92.2.77 ((33..665")5") Backlight Compensation Off / BLC / HLC
Contrast Enhancement SSDR (Off / On)
92.7 (3.65")
Unit : mm (inch) Digital Noise Reduction SSNRIII (Off / On)
Defog Off / Auto / Manual
Motion Detection Off / On
Privacy Masking Off / On (8 programmable zones)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / Low / Middle / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Electronic Shutter Speed 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Reverse H-Rev (Off / On)
Communication Coaxial control (SPC-300 compatible)
Protocol Coax : Pelco-C (Coaxitron)
Environmental
ØØ111155..88(4(.456.5")6") Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical Dual (24V AC & 12V DC ±10%)
Input Voltage / Current
Power Consumption Max. 2.5W
Mechanical
Color / Material Ivory / Plastic (Dome cover : Clear)
Dimensions (WxHxD) Ø115.8 x 92.7mm (Ø4.56" x 3.65")
Weight 313g (0.69 lb)
Ø115.8 (4.56") * The latest product information / specification can be found at www.samsungsecurity.com
Accessories (Optional)
SBP-300WM0 120
REVISED 07-2014
