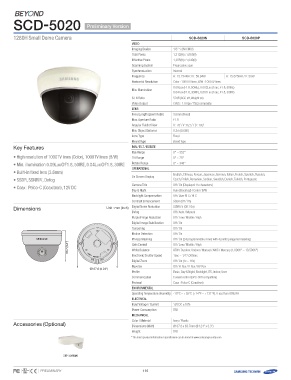

Page 116 - Catalog Samsung 2014
P. 116
-5020 Preliminary Version
1280H Small Dome Camera SCD-5020N SCD-5020P
Video 1/3" 1.3M CMOS H : 15.625KHz / V : 50Hz
Imaging Device 1,312(H) x 1,069(V)
Total Pixels 1,305(H) x 1,049(V)
Effective Pixels Progressive scan
Scanning System Internal
Synchronization H : 15.734KHz / V : 59.94Hz
Frequency Color : 1000TV lines, B/W : 1000TV lines
Horizontal Resolution
Min. Illumination 0.09Lux (F1.8, 50IRE), 0.002Lux (1sec, F1.8, 50IRE)
0.04Lux (F1.8, 30IRE), 0.001Lux (1sec, F1.8, 30IRE)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3.6mm (Fixed)
Max. Aperture Ratio F1.8
Angular Field of View H : 78˚ / V : 62.5˚ / D : 100˚
Min. Object Distance 0.2m (0.66ft)
Lens Type Fixed
Mount Type Board type
Key Features Pan / Tilt / Rotate
• High resolution of 1000TV lines (Color), 1000TV lines (B/W) Pan Range 0° ~ 352°
• Min. illumination 0.09Lux@F1.8, 50IRE, 0.04Lux@F1.8, 30IRE
• Built-in fixed lens (3.6mm) Tilt Range 0° ~ 75°
• SSDR, SSNRIV, Defog
• Coax : Pelco-C (Coaxitron), 12V DC Rotate Range 0° ~ 348°
Operational
On Screen Display English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Russian,
Czech, Polish, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
Camera Title Off / On (Displayed 15 characters)
Day & Night Auto (Electrical) / Color / B/W
838.3.77((33..33")") Backlight Compensation Off / User BLC / HLC
83.7 (3.3") Contrast Enhancement SSDR (Off / On)
Dimensions Unit : mm (inch) Digital Noise Reduction SSNR IV (Off / On)
Defog Off / Auto / Manual
Purple Fringe Reduction Off / Low / Middle / High
Digital Image Stabilization Off / On
Tampering Off / On
Motion Detection Off / On
Privacy Masking Off / On (24 programmable zones with 4 points polygonal masking)
Gain Control Off / Low / Middle / High
White Balance ATW / Outdoor / Indoor / Manual / AWC / Mercury (1,800K° ~ 10,500K°)
Electronic Shutter Speed 1sec ~ 1/12,000sec
Digital Zoom Off / On (1x ~ 16x)
ØØ110077..66((44.2.42"4) ") Reverse Off / H-Rev / V-Rev / HV-Rev
Ø107.6 (4.24") Profile Basic, Day & Night, Backlight, ITS, Indoor, User
Accessories (Optional) Communication Coaxial control (SPC-300 compatible)
Protocol Coax : Pelco-C (Coaxitron)
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
Input Voltage / Current 12V DC ±10%
Power Consumption TBD
Mechanical
Color / Material Ivory / Plastic
Dimensions (WxH) Ø107.6 x 83.7mm (Ø4.24" x 3.3")
Weight TBD
* The latest product information / specification can be found at www.samsungsecurity.com
