-1020R

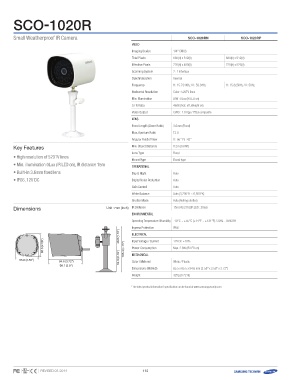

Small Weatherproof IR Camera SCO-1020RN SCO-1020RP
Video
Imaging Device 1/4" CMOS
Total Pixels 680(H) x 512(V) 680(H) x 512(V)
Effective Pixels 720(H) x 480(V) 720(H) x 576(V)
Scanning System 2 : 1 Interlace
Synchronization Internal
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 520TV lines
Min. Illumination B/W : 0Lux (IR LED on)
S / N Ratio 46dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3.6mm (Fixed)
Max. Aperture Ratio F2.0
Angular Field of View H : 56° / V : 42°
Key Features Min. Object Distance 0.2m (0.66ft)
Lens Type Fixed
• High resolution of 520TV lines Mount Type Board type
• Min. illumination 0Lux (IR LED on), IR distance 15m Operational
• Built-in 3.6mm fixed lens Day & Night Auto
• IP66, 12V DC Digital Noise Reduction Auto
Gain Control Auto
White Balance Auto (3,200°K ~ 6,500°K)
Shutter Mode Auto (Rolling shutter)
Dimensions Unit : mm (inch) IR Distance 15m (49.21ft) (IR LED : 20ea)
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / 20% ~ 85% RH
43.463(.16.72") Ingress Protection IP66
Electrical
54 43.6
65.5 105.140(54..415") 105.4Input Voltage / Current12V DC ±10%
65.56(5.2.558")
Power Consumption Max. 2.6W (IR LED on)
65.5 65.565(2.5.58") 94.6 94.964(.36.72") 54.0 (524.13") Mechanical White / Plastic
99.1 99.919(.31.9") Color / Material 65.5 x 65.5 x 94.6 mm (2.58" x 2.58" x 3.72")
Dimensions (WxHxD)
Weight 325g (0.72 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
REVISED 03-2014 112
