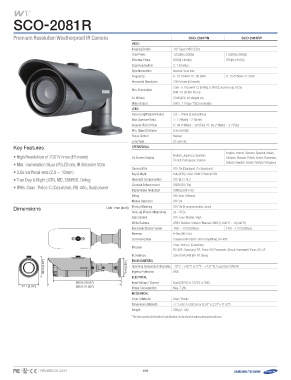

Premium Resolution Weatherproof IR Camera SCO-2081RN SCO-2081RP
Video 1/3" Super HAD CCD II 1,020(H) x 596(V)
Imaging Device 1,020(H) x 508(V) 976(H) x 582(V)
Total Pixels 976(H) x 494(V)
Effective Pixels 2 : 1 Interlace H : 15.625KHz / V : 50Hz
Scanning System Internal / Line lock
Synchronization H : 15.734KHz / V : 59.94Hz
Frequency 700TV lines (ER mode)
Horizontal Resolution
Min. Illumination Color : 0.15Lux@F1.2 (50IRE), 0.0002Lux (Sens-up, 512x)
B/W : 0 LUX (IR LED on)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 2.8 ~ 10mm (3.6x) varifocal
Max. Aperture Ratio 1 : 1.2(Wide) ~ 2.8(Tele)
Angular Field of View H : 94.4°(Wide) ~ 28°(Tele) / V : 69.2°(Wide) ~ 21°(Tele)
Min. Object Distance 0.2m (0.66ft)
Focus Control Manual
Lens Type DC auto iris
Operational
Key Features
On Screen Display English, Japanese, Spanish, English, French, German, Spanish, Italian,
• High Resolution of 700TV lines (ER mode) French, Portuguese, Korean Chinese, Russian, Polish, Czech, Romanian,
• Min. illumination 0Lux (IR LED on), IR distance 50m Serbian, Swedish, Danish, Turkish, Portuguese
• 3.6x varifocal lens (2.8 ~ 10mm)
• True Day & Night (ICR), MD, SSNRIII, Defog Camera Title Off / On (Displayed 15 characters)
• IP66, Coax : Pelco-C (Coaxitron), RS-485, Dual power Day & Night
Backlight Compensation Auto (ICR) / Color / B/W / External D/N
Contrast Enhancement
Digital Noise Reduction Off / BLC / HLC
Defog
Motion Detection SSDR (Off / On)
Privacy Masking
Sens-up (Frame Integration) SSNRIII (Off / On)
Gain Control Off / Auto / Manual
White Balance
Electronic Shutter Speed Off / On
Reverse
Dimensions Unit : mm (inch) Communication Off / On (8 programmable zones)
2x ~ 512x
Off / Low / Middle / High
ATW / Outdoor / Indoor / Manual / AWC (1,800°K ~ 10,500°K)
1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
H-Rev (Off / On)
Coaxial control (SPC-300 compatible), RS-485
Protocol Coax : Pelco-C (Coaxitron)
RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE
IR Distance 50m (164.04ft) (IR LED 36ea)
82.842(.43.24") Environmental
73.47 (3.24.89")
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Ingress Protection IP66
Electrical
260.256(01.50.26") Input Voltage / Current Dual (24V AC & 12V DC ±10%)
280.228(01.21.03")
77.17(73..104") Power Consumption Max. 7.2W
Mechanical
Color / Material Grey / Plastic
Dimensions (WxHxD) 77.1 x 82.4 x 280.2mm (3.04" x 3.24" x 11.03")
Weight 500g (1.1 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
REVISED 03-2014 108
