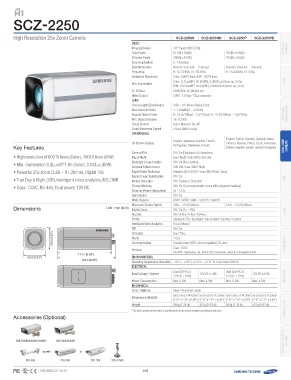

Page 105 - Catalog Samsung 2014
P. 105
-2250
High Resolution 25x Zoom Camera SCZ-2250N SCZ-2250ND SCZ-2250P SCZ-2250PD
Video 1/4" Super HAD CCD II 795(H) x 596(V) NETWORK
Imaging Device 811(H) x 508(V) Camera
Total Pixels
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock Internal Internal / Line lock Internal
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 600TV lines, B/W : 700TV lines
NVR
Min. Illumination Color : 0.2Lux@F1.65 (50IRE), 0.0004Lux (Sens-up, 512x)
B/W : 0 .02Lux@F1.65 (50IRE), 0.00004Lux (Sens-up, 512x)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite NETWORK
Lens 3.66 ~ 91.36mm (Optical 25x) PERIPHERAL
Focal Length (Zoom Ratio)
Max. Aperture Ratio 1 : 1.65(Wide) ~ 3.0(Tele)
Angular Field of View H : 54.95°(Wide) ~ 2.24°(Tele) / V : 41.83°(Wide) ~ 1.68°(Tele)
Min. Object Distance 1m (3.28ft)
Focus Control Auto / Manual / One AF
Zoom Movement Speed 2.9sec (Wide to tele)
Operational
Key Features On Screen Display English, Japanese, Spanish, French, English, French, German, Spanish, Italian, Analogue
Portuguese, Taiwanese, Korean Chinese, Russian, Polish, Czech, Romanian, Camera
• High resolution of 600TV lines (Color), 700TV lines (B/W) Serbian, Swedish, Danish, Turkish, Portuguese
• Min. illumination 0.2Lux@F1.65 (Color), 0.02Lux (B/W)
• Powerful 25x zoom (3.66 ~ 91.36mm), Digital 16x Camera Title Off / On (Displayed 54 characters)
• True Day & Night (ICR), Intelligent video analytics, MD, DNR Day & Night Day / Night / Auto (ICR) / External
• Coax : CCVC, RS-485, Dual power, 12V DC
Backlight Compensation Off / On (Area setting)
Contrast Enhancement XDR (Off / Low / Mid / High)
Digital Noise Reduction Adaptive 3D+2D (Off / Low / Mid / High / User)
Digital Image Stabilization Off / On DVR
Motion Detection Off / Tracking / Detection
Privacy Masking Off / On (12 programmable zones with polygonal masking)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / On
White Balance ATW1 / ATW2 / AWC / 3200°K / 5600°K
Dimensions Unit : mm (inch) Electronic Shutter Speed 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Digital Zoom Off / On (1x ~ 16x) LENS
Reverse Off / H-Rev / V-Rev / HV-Rev
Profile Standard / ITS / Backlight / Day & Night / Gaming / Custom
Intelligent Video Analytics Fixed / Moved
PIP Off / On
5599..00 ((22..3322"")) Schedule Day / Time PERIPHERAL
Alarm 1 Out
Communication Coaxial control (SPC-300 compatible), RS-485
Protocol Coax : CCVC
RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon
114444..22 ((55..6688""))
5599..00 ((22..3322"")) 115544..55 ((66..0088"")) Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10% Dual (24V AC & 12V DC ±10% MONITOR
12V DC ±10%) 12V DC ±10%)
Power Consumption Max. 5.2W Max. 4.5W Max. 5.2W Max. 4.5W
Mechanical
Color / Material Silver / Aluminum, Steel
Dimensions (WxHxD) 59.0 x 59.0 x 144.2mm 59.0 x 59.0 x 113.9mm 59.0 x 59.0 x 144.2mm 59.0 x 59.0 x 113.9mm
(2.32" x 2.32" x 5.68") (2.32" x 2.32" x 4.48") (2.32" x 2.32" x 5.68") (2.32" x 2.32" x 4.48")
CONTROLLER
Weight 564g (1.24 lb) 421g (0.93 lb) 564g (1.24 lb) 421g (0.93 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
Accessories (Optional)
SHB-4300H/4300H1/4300H2 SHB-4200/4200H Access Control
System
use with or
STB-400 STH-500 STH-200 STB-4150V
REVISED 07-2014 105
