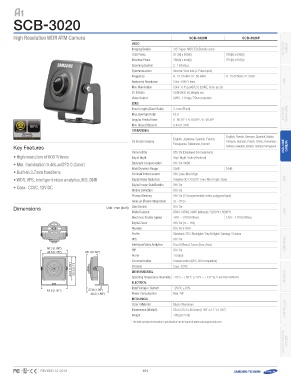

Page 101 - Catalog Samsung 2014
P. 101
-3020
High Resolution WDR ATM Camera SCB-3020N SCB-3020P
Video 1/3" Super HAD CCD (Double scan) NETWORK
Imaging Device Camera
Total Pixels 811(H) x 508(V) 795(H) x 596(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock (L-Pulse input)
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 600TV lines NVR
Min. Illumination Color : 0.45Lux@F2.0 (50IRE, Sens-up 2x)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3.7mm (Fixed) NETWORK
PERIPHERAL
Max. Aperture Ratio F2.0
Angular Field of View D : 80.81° / H : 64.65° / V : 48.49°
Min. Object Distance 0.4m (1.31ft)
Operational
Key Features On Screen Display English, Japanese, Spanish, French, English, French, German, Spanish, Italian, Analogue
• High resolution of 600TV lines Portuguese, Taiwanese, Korean Chinese, Russian, Polish, Czech, Romanian, Camera
Camera Title Serbian, Swedish, Danish, Turkish, Portuguese
Day & Night Off / On (Displayed 54 characters)
Day / Night / Auto (Electrical)
• Min. illumination 0.45Lux@F2.0 (Color) Backlight Compensation Off / On / WDR DVR
• Built-in 3.7mm fixed lens Wide Dynamic Range 52dB 54dB
• WDR, VPS, Intelligent video analytics, MD, DNR Contrast Enhancement Off / Low / Mid / High
• Coax : CCVC, 12V DC Digital Noise Reduction Adaptive 3D+2D (Off / Low / Mid / High / User)
Digital Image Stabilization Off / On
Motion Detection Off / On
Privacy Masking Off / On (12 programmable zones, polygonal type)
Sens-up (Frame Integration) 2x ~ 512x
Dimensions Unit : mm (inch) Gain Control Off / On LENS
White Balance ATW1 / ATW2 / AWC (Manual) / 3200°K / 5600°K
Electronic Shutter Speed 1/60 ~ 1/200,000sec 1/50 ~ 1/200,000sec
Digital Zoom Off / On (1x ~ 16x)
Reverse Off / H / V / H/V
Profile Standard / ITS / Backlight / Day & Night / Gaming / Custom
VPS Off / On PERIPHERAL
5050.2.2 ((11..9988")") 2200..11 ((00..7799")") Intelligent Video Analytics Fixed / Moved, Fence (Line, Area)
4444.5.5 ((11..7755")") PIP Off / On
Alarm 1 Output
4444..55 ((11..775"5)") Communication Coaxial control (SPC-300 compatible)
553.33. (32(.12".)1")
Protocol Coax : CCVC
Environmental MONITOR
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
4848.5.5((11..9911"") ) 2277..66(1(1.0.90"9) ") Input Voltage / Current 12V DC ±10%
4400..22 ((11..5588")") Power Consumption Max. 2W
Mechanical
CONTROLLER
Color / Material Black / Aluminum
Dimensions (WxHxD) 50.2 x 53.3 x 40.2mm (1.98" x 2.1" x 1.58")
Weight 105g (0.23 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
Access Control
System
REVISED 12-2013 101
