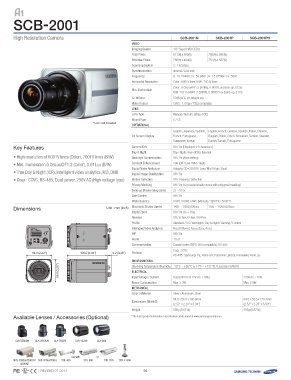

Page 98 - Catalog Samsung 2014
P. 98
-2001
High Resolution Camera SCB-2001N SCB-2001P SCB-2001PH
Video 1/3" Super HAD CCD II 795(H) x 596(V)
Imaging Device 811(H) x 508(V)
Total Pixels
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Scanning System
Synchronization 2 : 1 Interlace
Frequency
Horizontal Resolution Internal / Line lock
H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Color : 600TV lines, B/W : 700TV lines
Min. Illumination Color : 0.05Lux@F1.2 (50IRE), 0.0001Lux (Sens-up, 512x)
B/W : 0.01Lux@F1.2 (50IRE), 0.00002Lux (Sens-up, 512x)
* Lens not included S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Lens Type Manual / Auto iris (Video / DC)
Mount Type C / CS
Operational
English, Japanese, Spanish, English, French, German, Spanish, Italian, Chinese,
On Screen Display French, Portuguese, Russian, Polish, Czech, Romanian, Serbian, Swedish,
Taiwanese, Korean Danish, Turkish, Portuguese
Key Features Camera Title Off / On (Displayed 54 characters)
• High resolution of 600TV lines (Color), 700TV lines (B/W) Day & Night
Backlight Compensation Day / Night / Auto (ICR) / External
Off / On (Area setting)
• Min. illumination 0.05Lux@F1.2 (Color), 0.01Lux (B/W) Contrast Enhancement XDR (Off / Low / Mid / High)
• True Day & Night (ICR), Intelligent video analytics, MD, DNR Digital Noise Reduction
Digital Image Stabilization Adaptive 3D+2D (Off / Low / Mid / High / User)
Off / On
• Coax : CCVC, RS-485, Dual power, 230V AC (High voltage type) Motion Detection Off / Tracking / Detection
Privacy Masking Off / On (12 programmable zones with polygonal masking)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / On
White Balance ATW1 / ATW2 / AWC (Manual) / 3200°K / 5600°K
Dimensions Unit : mm (inch) Electronic Shutter Speed 1/60 ~ 1/200,000sec 1/50 ~ 1/200,000sec
Digital Zoom
Off / On (1x ~ 16x)
Reverse Off / H-Rev / V-Rev / HV-Rev
Profile Standard / ITS / Backlight / Day & Night / Gaming / Custom
Intelligent Video Analytics Fixed / Moved, Fence (Line, Area)
PIP Off / On
Alarm 1 Out
Communication Coaxial control (SPC-300 compatible), RS-485
6644.0.0(2(2.5.522"")) 110000.0.0(3(3.9.944"")) 99..22 ((00..3366"")) Protocol Coax : CCVC
RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, GE
Environmental
5588..00 ((22..2288"")) Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10%) 230V AC ±10%
Max. 2.9W
Power Consumption Max. 2.3W
Mechanical
Color / Material Silver / Aluminum, Steel
Dimensions (WxHxD) 64.0 x 58.0 x 100.0mm 64.0 x 58.0 x 129.2mm
(2.52" x 2.28" x 3.94") (2.52" x 2.28" x 5.09")
Weight 305g (0.67 lb) 395g (0.87 lb)
Available Lenses / Accessories (Optional) * The latest product information / specification can be found at www.samsungsecurity.com
SLA-3580DN SLA-2812DN SLA-550DV SLA-12240 SLA-880
use with or
SHB-4300H/4300H1/ SHB-4200/4200H STB-400 STH-500 STH-200 STB-4150V
4300H2
REVISED 07-2014 98
