P. 94
-3001

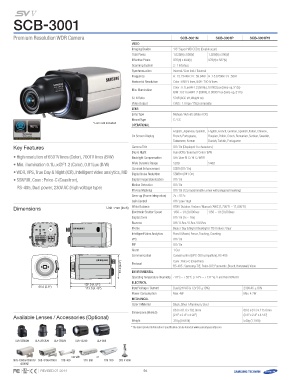

Premium Resolution WDR Camera SCB-3001N SCB-3001P SCB-3001PH
Video 1/3" Super HAD CCD II (Double scan)
Imaging Device
Total Pixels 1,028(H) x 508(V) 1,028(H) x 596(V)
Effective Pixels
976(H) x 494(V) 976(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock / External
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 650TV lines, B/W : 700TV lines
Min. Illumination Color : 0.1Lux@F1.2 (50IRE), 0.0002Lux (Sens-up, 512x)
B/W : 0.01Lux@F1.2 (50IRE), 0.00002Lux (Sens-up, 512x)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Lens Type Manual / Auto iris (Video / DC)
* Lens not included Mount Type C / CS
Operational
English, Japanese, Spanish, English, French, German, Spanish, Italian, Chinese,
On Screen Display French, Portuguese, Russian, Polish, Czech, Romanian, Serbian, Swedish,
Taiwanese, Korean Danish, Turkish, Portuguese
Key Features Camera Title Off / On (Displayed 15 characters)
• High resolution of 650TV lines (Color), 700TV lines (B/W) Day & Night Auto (ICR) / External / Color / B/W
Backlight Compensation Off / User BLC / HLC / WDR
• Min. illumination 0.1Lux@F1.2 (Color), 0.01Lux (B/W) Wide Dynamic Range 52dB 54dB
• WDR, VPS, True Day & Night (ICR), Intelligent video analytics, MD Contrast Enhancement SSDR (Off / On)
• SSNRIII, Coax : Pelco-C (Coaxitron), Digital Noise Reduction SSNRIII (Off / On)
Digital Image Stabilization Off / On
RS-485, Dual power, 230V AC (High voltage type) Motion Detection Off / On
Privacy Masking Off / On (12 programmable zones with polygonal masking)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / Low / High
White Balance
Dimensions Unit : mm (inch) Electronic Shutter Speed ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Digital Zoom Off / On (1x ~ 16x)
Reverse Off / H-Rev / V-Rev / HV-Rev
Profile Basic / Day & Night / Backlight / ITS / Indoor / User
Intelligent Video Analytics Fixed / Moved, Fence, Tracking, Counting
VPS Off / On
PIP Off / On
Alarm 1 Out
Communication Coaxial control (SPC-300 compatible), RS-485
661.1.00((22..44"")) Protocol Coax : Pelco-C (Coaxitron)
RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
110022..00 ((44..0022"") ) Electrical
111133.0.0(4(4..4455""))
6666..00 ((22..66"")) Input Voltage / Current Dual (24V AC & 12V DC ±10%) 230V AC ±10%
Max. 4.2W
Power Consumption Max. 4W
Mechanical
Color / Material Black, Silver / Aluminum, Steel
Available Lenses / Accessories (Optional) Dimensions (WxHxD) 66.0 x 61.0 x 102.0mm 66.0 x 61.0 x 115.0mm
Weight (2.6" x 2.4" x 4.02") (2.6" x 2.4" x 4.53")
310g (0.68 lb) 540g (1.19 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
SLA-3580DN SLA-2812DN SLA-550DV SLA-12240 SLA-880
use with or
SHB-4300H/4300H1/ SHB-4200/4200H STB-400 STH-500 STH-200 STB-4150V
4300H2
REVISED 07-2014 94
