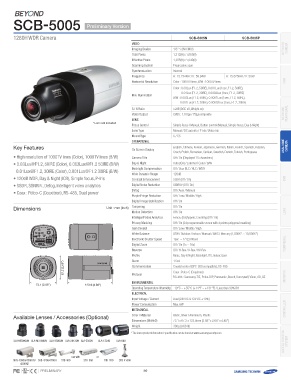

-5005 Preliminary Version
1280H WDR Camera SCB-5005N SCB-5005P
Video 1/3" 1.3M CMOS NETWORK
Imaging Device 1,312(H) x 1,069(V) Camera
Total Pixels 1,305(H) x 1,049(V)
Effective Pixels Progressive scan H : 15.625KHz / V : 50Hz
Scanning System Internal
Synchronization H : 15.734KHz / V : 59.94Hz NVR
Frequency Color : 1000TV lines, B/W : 1000TV lines
Horizontal Resolution
Min. Illumination Color : 0.03Lux (F1.2, 50IRE), 0.001Lux (1sec, F1.2, 50IRE),
0.01Lux (F1.2, 30IRE), 0.0003Lux (1sec, F1.2, 30IRE)
B/W : 0.003Lux (F1.2, 50IRE), 0.0001Lux (1sec, F1.2, 50IRE),
0.001Lux (F1.2, 30IRE), 0.00003Lux (1sec, F1.2, 30IRE)
* Lens not included S / N Ratio 52dB (AGC off, Weight on) NETWORK
Video Output CVBS : 1.0 Vpp / 75Ω composite PERIPHERAL
Lens
Key Features Focus Control Simple focus / Manual, Button control (Manual, Simple focus, Day & Night) Analogue
Lens Type Manual / DC auto iris / P-iris / Video iris Camera
Mount Type C / CS
Operational
English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Russian,
On Screen Display Czech, Polish, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
Off / On (Displayed 15 characters)
• High resolution of 1000TV lines (Color), 1000TV lines (B/W) Camera Title Auto (ICR) / External / Color / B/W
Off / User BLC / HLC / WDR
• 0.03Lux@F1.2, 50IRE (Color), 0.003Lux@F1.2 50IRE (B/W) Day & Night 120dB DVR
0.01Lux@F1.2, 30IRE (Color), 0.001Lux@F1.2 30IRE (B/W) Backlight Compensation SSDR (Off / On)
Wide Dynamic Range SSNRIV (Off / On)
• 120dB WDR, Day & Night (ICR), Simple focus, P-Iris Contrast Enhancement Off / Auto / Manual
Off / Low / Middle / High
• SSDR, SSNRIV, Defog, Intelligent video analytics Digital Noise Reduction Off / On
• Coax : Pelco-C (Coaxitron), RS-485, Dual power Defog Off / On
Purple Fringe Reduction Off / On
Fence, (Dis)Appear, Counting (Off / On)
Digital Image Stabilization Off / On (24 programmable zones with 4 points polygonal masking)
Off / Low / Middle / High
Dimensions Unit : mm (inch) Tampering ATW / Outdoor / Indoor / Manual / AWC / Mercury (1,800K° ~ 10,500K°) LENS
Motion Detection 1sec ~ 1/12,000sec
Off / On (1x ~ 16x)
Intelligent Video Analytics Off / H-Rev / V-Rev / HV-Rev
Basic, Day & Night, Backlight, ITS, Indoor, User
Privacy Masking 1 Out
Coaxial control (SPC-300 compatible), RS-485
Gain Control
White Balance
Electronic Shutter Speed PERIPHERAL
Digital Zoom
Reverse
Profile
6677..22 ((22..6655"")) Alarm
Communication
Protocol Coax : Pelco-C (Coaxitron) MONITOR
RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE
7733..11((22..8888"")) 112233..99 ((44..8888"")) Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10%) CONTROLLER
Power Consumption Max. 6W
Mechanical
Available Lenses / Accessories (Optional) Color / Material Black, Silver / Aluminum, Plastic
Dimensions (WxHxD) 73.1 x 67.2 x 123.9mm (2.88" x 2.65" x 4.88")
Weight 300g (0.66 lb)
* The latest product information / specification can be found at www.samsungsecurity.com Access Control
System
SLA-M2890DN SLA-M 3180DN SLA-3580DN SLA-2812DN SLA-550DV SLA-12240 SLA-880
use with or
SHB-4300H/4300H1/ SHB-4200/4200H STB-400 STH-500 STH-200 STB-4150V
4300H2
