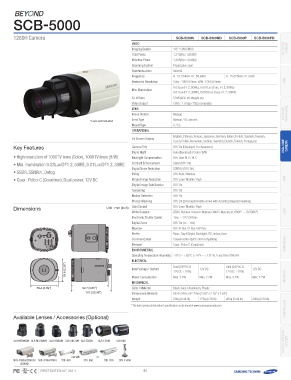

1280H Camera SCB-5000N SCB-5000ND SCB-5000P SCB-5000PD
Video NETWORK
Camera
Imaging Device 1/3" 1.3M CMOS
Total Pixels 1,312(H) x 1,069(V)
Effective Pixels 1,305(H) x 1,049(V)
Scanning System Progressive scan
Synchronization Internal
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 1000TV lines, B/W : 1000TV lines NVR
Min. Illumination 0.03Lux (F1.2, 50IRE), 0.001Lux (1sec, F1.2, 50IRE)
0.01Lux (F1.2, 30IRE), 0.0003Lux (1sec, F1.2, 30IRE)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens NETWORK
PERIPHERAL
Focus Control Manual
* Lens not included Lens Type Manual / DC auto iris
Mount Type C / CS
Operational
On Screen Display English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Russian, Analogue
Czech, Polish, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese Camera
Key Features Camera Title Off / On (Displayed 15 characters)
• High resolution of 1000TV lines (Color), 1000TV lines (B/W) Day & Night Auto (Electrical) / Color / B/W
Backlight Compensation Off / User BLC / HLC
• Min. illumination 0.03Lux@F1.2, 50IRE, 0.01Lux@F1.2, 30IRE Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction
• SSDR, SSNRIV, Defog SSNRIV (Off / On)
Defog Off / Auto / Manual
• Coax : Pelco-C (Coaxitron), Dual power, 12V DC Purple Fringe Reduction Off / Low / Middle / High DVR
Digital Image Stabilization Off / On
Tampering Off / On
Motion Detection Off / On
Privacy Masking Off / On (24 programmable zones with 4 points polygonal masking)
Dimensions Unit : mm (inch) Gain Control Off / Low / Middle / High LENS
White Balance ATW / Outdoor / Indoor / Manual / AWC / Mercury (1,800K° ~ 10,500K°)
Electronic Shutter Speed 1sec ~ 1/12,000sec
Digital Zoom Off / On (1x ~ 16x)
Reverse Off / H-Rev / V-Rev / HV-Rev
Profile Basic, Day & Night, Backlight, ITS, Indoor, User
Communication Coaxial control (SPC-300 compatible) PERIPHERAL
Protocol Coax : Pelco-C (Coaxitron)
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
6509..06 ((22..3365")") Electrical
Input Voltage / Current Dual (24V AC & 12V DC Dual (24V AC & 12V DC MONITOR
12V DC ±10%) 12V DC ±10%)
Power Consumption Max. 3.7W Max. 2.7W Max. 3.7W Max. 2.7W
Mechanical
6689.4.0(2(2.6.792"")) 929.37.0(3(.36.656"")) Color / Material Black, Ivory / Aluminum, Plastic
110011..00((33..9988")") Dimensions (WxHxD) 68.4 x 59.6 x 92.7mm (2.69" x 2.35" x 3.65")
Weight 200g (0.44 lb) 175g (0.39 lb) 200g (0.44 lb) 200g (0.39 lb) CONTROLLER
* The latest product information / specification can be found at www.samsungsecurity.com
Available Lenses / Accessories (Optional)
SLA-M2890DN SLA-M 3180DN SLA-3580DN SLA-2812DN SLA-550DV SLA-12240 SLA-880 Access Control
System
use with or
SHB-4300H/4300H1/ SHB-4200/4200H STB-400 STH-500 STH-200 STB-4150V
4300H2
FIRST EDITION 07-2014 91
