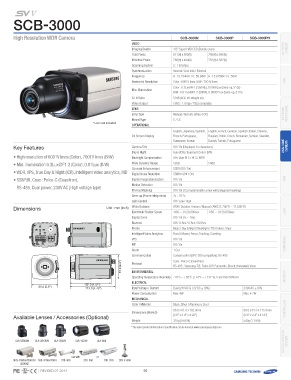

Page 95 - Catalog Samsung 2014
P. 95
-3000
High Resolution WDR Camera SCB-3000N SCB-3000P SCB-3000PH
Video 1/3" Super HAD CCD (Double scan) NETWORK
Imaging Device Camera
Total Pixels 811(H) x 508(V) 795(H) x 596(V)
Effective Pixels
768(H) x 494(V) 752(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock / External
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 600TV lines, B/W : 700TV lines NVR
Min. Illumination Color : 0.3Lux@F1.2 (50IRE), 0.0006Lux (Sens-up, 512x)
B/W : 0.01Lux@F1.2 (50IRE), 0.00002Lux (Sens-up, 512x)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite NETWORK
Lens PERIPHERAL
Lens Type Manual / Auto iris (Video / DC)
* Lens not included Mount Type C / CS
Operational
English, Japanese, Spanish, English, French, German, Spanish, Italian, Chinese,
On Screen Display French, Portuguese, Russian, Polish, Czech, Romanian, Serbian, Swedish,
Taiwanese, Korean Danish, Turkish, Portuguese Analogue
Camera
Key Features Camera Title Off / On (Displayed 15 characters)
• High resolution of 600TV lines (Color), 700TV lines (B/W) Day & Night Auto (ICR) / External / Color / B/W
Backlight Compensation Off / User BLC / HLC / WDR
• Min. illumination 0.3Lux@F1.2 (Color), 0.01Lux (B/W) Wide Dynamic Range 52dB 54dB
SSDR (Off / On)
Contrast Enhancement SSNRIII (Off / On)
• WDR, VPS, True Day & Night (ICR), Intelligent video analytics, MD Digital Noise Reduction Off / On
Off / On
• SSNRIII, Coax : Pelco-C (Coaxitron), Digital Image Stabilization Off / On (12 programmable zones with polygonal masking) DVR
RS-485, Dual power, 230V AC (High voltage type) Motion Detection
Privacy Masking
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / Low / High
White Balance
Dimensions Unit : mm (inch) Electronic Shutter Speed ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K) LENS
1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Digital Zoom Off / On (1x ~ 16x)
Reverse Off / H-Rev / V-Rev / HV-Rev
Profile Basic / Day & Night / Backlight / ITS / Indoor / User
Intelligent Video Analytics Fixed / Moved, Fence, Tracking, Counting
VPS Off / On PERIPHERAL
PIP Off / On
Alarm 1 Out
Communication Coaxial control (SPC-300 compatible), RS-485
661.1.00((22..44"")) Protocol Coax : Pelco-C (Coaxitron)
RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon
Environmental MONITOR
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
110022..00 ((44..0022"") ) Electrical
111133.0.0(4(4..4455""))
6666..00 ((22..66"")) Input Voltage / Current Dual (24V AC & 12V DC ±10%) 230V AC ±10%
Max. 4.2W
Power Consumption Max. 4W
Mechanical CONTROLLER
Color / Material Black, Silver / Aluminum, Steel
Available Lenses / Accessories (Optional) Dimensions (WxHxD) 66.0 x 61.0 x 102.0mm 66.0 x 61.0 x 115.0mm
Weight (2.6" x 2.4" x 4.02") (2.6" x 2.4" x 4.53")
310g (0.68 lb) 540g (1.19 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
SLA-3580DN SLA-2812DN SLA-550DV SLA-12240 SLA-880 Access Control
System
use with or
SHB-4300H/4300H1/ SHB-4200/4200H STB-400 STH-500 STH-200 STB-4150V
4300H2
REVISED 07-2014 95
