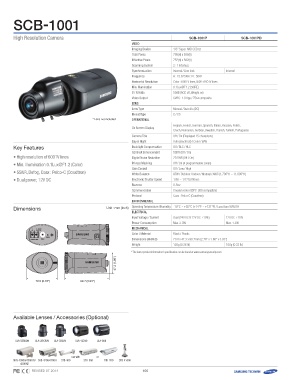

High Resolution Camera SCB-1001P SCB-1001PD
Video
Imaging Device 1/3" Super HAD CCD II
Total Pixels 795(H) x 596(V)
Effective Pixels 752(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock Internal
Frequency H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 600TV lines, B/W : 650TV lines
Min. Illumination 0.1Lux@F1.2 (50IRE)
S / N Ratio 50dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Lens Type Manual / Auto iris (DC)
Mount Type C / CS
* Lens not included Operational
Unit : mm (inch)
On Screen Display English, French, German, Spanish, Italian, Russian, Polish,
Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
Camera Title Off / On (Displayed 15 characters)
Day & Night Auto (Electrical) / Color / B/W
Key Features Backlight Compensation Off / BLC / HLC
• High resolution of 600TV lines Contrast Enhancement SSDR (Off / On)
• Min. Illumination 0.1Lux@F1.2 (Color)
• SSNR, Defog, Coax : Pelco-C (Coaxitron) Digital Noise Reduction 2D DNR (Off / On)
• Dual power, 12V DC
Privacy Masking Off / On (4 programmable zones)
Gain Control Off / Low / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Electronic Shutter Speed 1/50 ~ 1/120,000sec
Reverse H-Rev
Communication Coaxial control (SPC-300 compatible)
Protocol Coax : Pelco-C (Coaxitron)
Environmental
Dimensions Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10%) 12V DC ±10%
Power Consumption Max. 2.3W Max. 1.2W
1 --- 2 AC24V Mechanical
+ --- -- DC12V
Color / Material Black / Plastic
CLASS 2 ONLY POWER Dimensions (WxHxD) 70.0 x 47.3 x 99.7mm (2.76" x 1.86" x 3.93")
VIDEO
Weight 120g (0.26 lb) 100g (0.22 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
4477..33 ((11..8866""))
7700..00 ((22..7766"")) 9999.7.7(3(3.9.933""))
Available Lenses / Accessories (Optional)
SLA-3580DN SLA-2812DN SLA-550DV SLA-12240 SLA-880
use with or
SHB-4300H/4300H1/ SHB-4200/4200H STB-400 STH-500 STH-200 STB-4150V
4300H2
REVISED 07-2014 100
