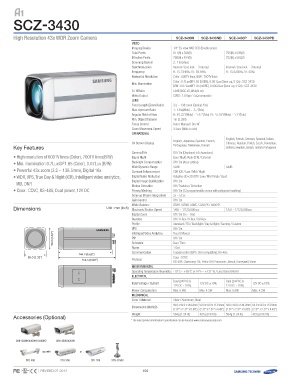

High Resolution 43x WDR Zoom Camera SCZ-3430N SCZ-3430ND SCZ-3430P SCZ-3430PD
Video
Imaging Device 1/4" Ex-view HAD CCD (Double scan)
Total Pixels 811(H) x 508(V) 795(H) x 596(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock Internal Internal / Line lock Internal
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 600TV lines, B/W : 700TV lines
Min. Illumination Color : 0.7Lux@F1.65 (50IRE), 0.001Lux (Sens-up, 512x) : SCZ-3430
B/W : 0 .07Lux@F1.65 (50IRE), 0.0002Lux (Sens-up, 512x) : SCZ-3430
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3.2 ~ 138.5mm (Optical 43x)
Max. Aperture Ratio 1 : 1.65(Wide) ~ 3.7(Tele)
Angular Field of View H : 61.22°(Wide) ~ 1.47°(Tele) / V : 47.16°(Wide) ~ 1.1°(Tele)
Min. Object Distance 1m (3.28ft)
Focus Control Auto / Manual / One AF
Zoom Movement Speed 3.2sec (Wide to tele)
Operational
Key Features On Screen Display English, Japanese, Spanish, French, English, French, German, Spanish, Italian,
Portuguese, Taiwanese, Korean Chinese, Russian, Polish, Czech, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese
• High resolution of 600TV lines (Color), 700TV lines(B/W) Camera Title Off / On (Displayed 54 characters)
Day & Night Day / Night /Auto (ICR) / External
• Min. illumination 0.7Lux@F1.65 (Color), 0.07Lux (B/W) Backlight Compensation Off / On (Area setting) 54dB
• Powerful 43x zoom (3.2 ~ 138.5mm), Digital 16x Wide Dynamic Range 52dB
Contrast Enhancement XDR (Off / Low / Mid / High)
• WDR, VPS, True Day & Night (ICR), Intelligent video analytics, Digital Noise Reduction Adaptive 3D+2D (Off / Low / Mid / High / User)
MD, DNR Digital Image Stabilization Off / On
Motion Detection Off / Tracking / Detection
• Coax : CCVC, RS-485, Dual power, 12V DC Privacy Masking Off / On (12 programmable zones with polygonal masking)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / On
Dimensions White Balance ATW1 / ATW2 / AWC / 3200°K / 5600°K
Unit : mm (inch) Electronic Shutter Speed
1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Digital Zoom Off / On (1x ~ 16x)
Reverse Off / H-Rev / V-Rev / HV-Rev
Profile Standard / ITS / Backlight / Day & Night / Gaming / Custom
VPS Off / On
5599..00 ((22..3322"")) Intelligent Video Analytics Fixed / Moved
PIP Off / On
Schedule Day / Time
Alarm 1 Out
5599..00 ((22..3322"")) 114444..22 ((55..6688"")) Communication Coaxial control (SPC-300 compatible), RS-485
115544..55 ((66..0088"")) Protocol
Coax : CCVC
RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10% Dual (24V AC & 12V DC ±10%
12V DC ±10%) 12V DC ±10%)
Power Consumption Max. 5.6W Max. 4.2W Max. 5.6W Max. 4.2W
Mechanical
Color / Material Silver / Aluminum, Steel
Dimensions (WxHxD) 59.0 x 59.0 x 144.2mm 59.0 x 59.0 x 113.9mm 59.0 x 59.0 x 144.2mm 59.0 x 59.0 x 113.9mm
(2.32" x 2.32" x 5.68") (2.32" x 2.32" x 4.48") (2.32" x 2.32" x 5.68") (2.32" x 2.32" x 4.48")
Accessories (Optional) Weight 564g (1.24 lb) 421g (0.93 lb) 564g (1.24 lb) 421g (0.93 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
SHB-4300H/4300H1/4300H2 SHB-4200/4200H
use with or
STB-400 STH-500 STH-200 STB-4150V
REVISED 07-2014 102
