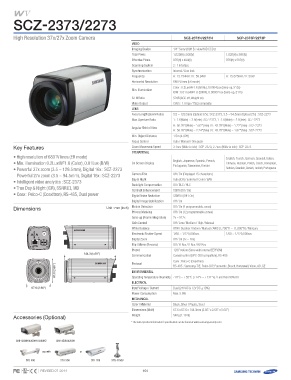

High Resolution 37x/27x Zoom Camera SCZ-2373N/2273N SCP-2373P/2273P
Video
Imaging Device 1/4" Sony 960H Ex-view HAD CCD II 1,020(H) x 596(V)
Total Pixels 1,020(H) x 508(V)
Effective Pixels 976(H) x 494(V) 976(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution 680TV lines (ER mode)
Min. Illumination Color : 0 .2Lux@F1.6 (50IRE), 0.0004Lux (Sens-up, 512x)
B/W : 0.01Lux@F1.6 (50IRE), 0.00002Lux (Sens-up, 512x)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3.5 ~ 129.5mm (Optical 37x) : SCZ-2373, 3.5 ~ 94.5mm (Optical 27x) : SCZ-2273
Max. Aperture Ratio 1 : 1.6(Wide) ~ 3.9(Tele) : SCZ-2373, 1 : 1.6(Wide) ~ 2.8(Tele) : SCZ-2273
Angular Field of View H : 56.26°(Wide) ~ 1.62°(Tele) / V : 43.28°(Wide) ~ 1.22°(Tele) : SCZ-2373
H : 56.26°(Wide) ~ 2.24°(Tele) / V : 43.28°(Wide) ~ 1.67°(Tele) : SCZ-2273
Min. Object Distance 1.5m (4.92ft)
Key Features Focus Control Auto / Manual / One push
Zoom Movement Speed 3.1sec (Wide to tele) : SCP-2373, 2.7sec (Wide to tele) : SCP-2273
• High resolution of 680TV lines (ER mode) Operational
• Min. illumination 0.2Lux@F1.6 (Color), 0.01Lux (B/W) English, Japanese, Spanish, French, English, French, German, Spanish, Italian,
• Powerful 37x zoom (3.5 ~ 129.5mm), Digital 16x : SCZ-2373 On Screen Display Portuguese, Taiwanese, Korean Chinese, Russian, Polish, Czech, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese
Powerful 27x zoom (3.5 ~ 94.5mm), 1D22ig.2i(t4a.81l"1) 6x : SCZ-2273 Camera Title Off / On (Displayed 15 characters)
• Intelligent video analytics : SCZ-237367.6 (2.66") Day & Night Auto (ICR) / External / Color / B/W
• True Day & Night (ICR), SSNRIII, MD Backlight Compensation Off / BLC / HLC
• Coax : Pelco-C (Coaxitron), RS-485, Dual power Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNRIII (Off / On)
Digital Image Stabilization Off / On
Dimensio67n.6 (s2.66") Unit : mm (inch) Motion Detection Off / On (4 programmable zones)
Privacy Masking Off / On (12 programmable zones)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / Low / Medium / High / Manual
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K) / Mercury
Electronic Shutter Speed 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Digital Zoom Off / On (1x ~ 16x)
Flip / Mirror (Reverse) Off / H-Rev / V-Rev / HV-Rev
114444..33 ((55.6.688")") Preset 128 Position (Store with internal EEPROM)
Communication Coaxial control (SPC-300 compatible), RS-485
667.7.66 ((22..6666")") Protocol Coax : Pelco-C (Coaxitron)
RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
6677.6.6 ((22..6666")") Input Voltage / Current Dual (24V AC & 12V DC ±10%)
Power Consumption Max. 5.8W
Mechanical
Color / Material Black, Silver / Plastic, Steel
Dimensions (WxH) 67.6 x 67.6 x 144.3mm (2.66" x 2.66" x 5.68")
Accessories (Optional) Weight 540g (1.19 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
