Page 109 - Catalog Samsung 2014
P. 109
-2040R/2030R

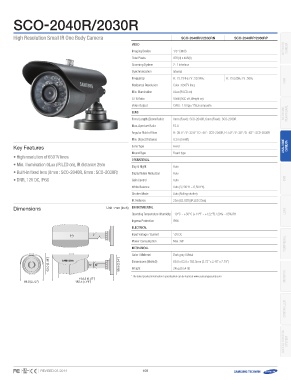

High Resolution Small IR One Body Camera SCO-2040RN/2030RN SCO-2040RP/2030RP
Video NETWORK
Camera
Imaging Device 1/3" CMOS
Total Pixels 976(H) x 496(V)
Scanning System 2 : 1 Interlace
Synchronization Internal
Frequency H : 15.734Hz / V : 59.94Hz H : 15.625Hz / V : 50Hz NVR
Horizontal Resolution Color : 650TV lines
Min. Illumination 0Lux (IR LED on)
S / N Ratio 50dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite NETWORK
PERIPHERAL
Lens
Focal Length (Zoom Ratio) 8mm (Fixed) : SCO-2040R, 6mm (Fixed) : SCO-2030R
Max. Aperture Ratio F2.0
Angular Field of View H : 38.5° / V : 32.6° / D : 45° : SCO-2040R, H : 50° / V : 38° / D : 62° : SCO-2030R
Min. Object Distance 0.2m (0.66ft) Analogue
Camera
Key Features Lens Type Fixed
Mount Type Board type DVR
• High resolution of 650TV lines Operational
• Min. Illumination 0Lux (IR LED on), IR distance 25m Day & Night Auto
• Built-in fixed lens (8mm : SCO-2040R, 6mm : SCO-2030R) Digital Noise Reduction Auto
• DNR, 12V DC, IP66 Gain Control Auto
White Balance Auto (3,200°K ~ 6,500°K)
Shutter Mode Auto (Rolling shutter)
IR Distance 25m (82.02ft) (IR LED 23ea)
Dimensions Unit : mm (inch) Environmental LENS
Operating Temperature / Humidity -10°C ~ +50°C (+14°F ~ +122°F) / 20% ~ 85% RH
Ingress Protection IP66
Electrical
Input Voltage / Current 12V DC PERIPHERAL
Power Consumption Max. 3W
Mechanical
Color / Material Dark gray / Metal
63.63.00 ((2.24.8")48") Dimensions (WxHxD) 69.0 x 63.0 x 182.5mm (2.72" x 2.48" x 7.19")
59.59.55 ((2.23.4")34")
Weight 245g (0.54 lb)
1641.634.3((66.4.74") 7") * The latest product information / specification can be found at www.samsungsecurity.com MONITOR
181822..55(7.1(97") .19")
69.609.0 ((22.7.2"7) 2")
CONTROLLER
Access Control
System
REVISED 03-2014 109
