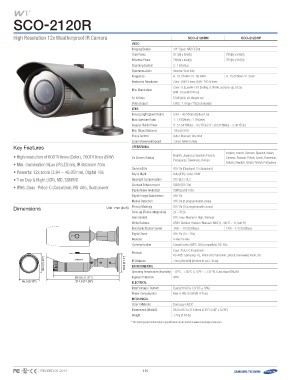

High Resolution 12x Weatherproof IR Camera SCO-2120RN SCO-2120RP
Video 1/4" Super HAD CCD II 795(H) x 596(V)
Imaging Device 811(H) x 508(V) 752(H) x 582(V)
Total Pixels 768(H) x 494(V)
Effective Pixels 2 : 1 Interlace H : 15.625KHz / V : 50Hz
Scanning System Internal / Line lock
Synchronization H : 15.734KHz / V : 59.94Hz
Frequency Color : 600TV lines, B/W : 700TV lines
Horizontal Resolution
Min. Illumination Color : 0.2Lux@F1.67 (50IRE), 0.0004Lux (Sens-up, 512x)
B/W : 0Lux (IR LED on)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3.94 ~ 46.05mm (Optical 12x)
Max. Aperture Ratio 1 : 1.67(Wide) ~ 1.88(Tele)
Angular Field of View H : 51.54°(Wide) ~ 4.5°(Tele) / V : 39.24°(Wide) ~ 3.38°(Tele)
Min. Object Distance 1.8m (5.91ft)
Focus Control Auto / Manual / One shot
Zoom Movement Speed 1.9sec (Wide to tele)
Operational
Key Features
On Screen Display English, Japanese, Spanish, French, English, French, German, Spanish, Italian,
• High resolution of 600TV lines (Color), 700TV lines (B/W) Portuguese, Taiwanese, Korean Chinese, Russian, Polish, Czech, Romanian,
• Min. illumination 0Lux (IR LED on), IR distance 70m Serbian, Swedish, Danish, Turkish, Portuguese
• Powerful 12x zoom (3.94 ~ 46.05mm), Digital 16x
• True Day & Night (ICR), MD, SSNRIII Camera Title Off / On (Displayed 15 characters)
• IP66, Coax : Pelco-C (Coaxitron), RS-485, Dual power Day & Night
Backlight Compensation Auto (ICR) / Color / B/W
Contrast Enhancement
Digital Noise Reduction Off / BLC / HLC
Digital Image Stabilization
Motion Detection SSDR (Off / On)
Privacy Masking
Sens-up (Frame Integration) SSNRIII (Off / On)
Gain Control Off / On
White Balance
Electronic Shutter Speed Off / On (8 programmable zones)
Digital Zoom
Dimensions Unit : mm (inch) Reverse Off / On (12 programmable zones)
Communication
2x ~ 512x
Off / Low / Medium / High / Manual
ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Off / On (1x ~ 16x)
H-Rev / V-Rev
Coaxial control (SPC-300 compatible), RS-485
Protocol Coax : Pelco-C (Coaxitron)
RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD
86.38(6.3.340")
79.87 (9.38.14") IR Distance 70m (229.66ft) (850nm IR LED : 31ea)
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
284.828(41.81.21") Ingress Protection IP66
314.381(41.82.39")
86.08(36 .39") Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10%)
Power Consumption Max. 6.8W / 6.5W (IR LED on)
Mechanical
Color / Material Dark gray / ALDC
Dimensions (WxHxD) 86.0 x 86.3 x 314.8mm (3.39" x 3.40" x 12.39")
Weight 1.2Kg (2.65 lb)
