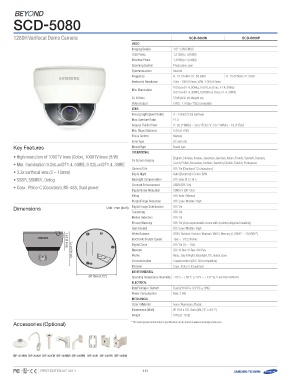

1280H Varifocal Dome Camera SCD-5080N SCD-5080P
Video
Imaging Device 1/3" 1.3M CMOS
Total Pixels 1,312(H) x 1,069(V)
Effective Pixels 1,305(H) x 1,049(V)
Scanning System Progressive scan
Synchronization Internal
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 1000TV lines, B/W : 1000TV lines
Min. Illumination 0.05Lux (F1.4, 50IRE), 0.001Lux (1sec, F1.4, 50IRE)
0.02Lux (F1.4, 30IRE), 0.0006Lux (1sec, F1.4, 30IRE)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3 ~ 10mm (3.3x) varifocal
Max. Aperture Ratio F1.4
Angular Field of View H : 82.0°(Wide) ~ 26.5°(Tele) / V : 59.7°(Wide) ~ 19.9°(Tele)
Min. Object Distance 0.5m (1.64ft)
Focus Control Manual
Lens Type DC auto iris
Key Features Mount Type Board type
• High resolution of 1000TV lines (Color), 1000TV lines (B/W) Operational
• Min. illumination 0.05Lux@F1.4, 50IRE, 0.02Lux@F1.4, 30IRE
• 3.3x varifocal lens (3 ~ 10mm) On Screen Display English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Russian,
• SSDR, SSNRIV, Defog Czech, Polish, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
• Coax : Pelco-C (Coaxitron), RS-485, Dual power
Camera Title Off / On (Displayed 15 characters)
Day & Night Auto (Electrical) / Color / B/W
Backlight Compensation Off / User BLC / HLC
Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNR IV (Off / On)
Defog Off / Auto / Manual
Purple Fringe Reduction Off / Low / Middle / High
Dimensions Unit : mm (inch) Digital Image Stabilization Off / On
Tampering Off / On
Motion Detection Off / On
Privacy Masking Off / On (24 programmable zones with 4 points polygonal masking)
Gain Control Off / Low / Middle / High
5566..99( (2.22.4"2)4") White Balance ATW / Outdoor / Indoor / Manual / AWC / Mercury (1,800K° ~ 10,500K°)
10110.1.88((44..001"1)")
Electronic Shutter Speed 1sec ~ 1/12,000sec
Digital Zoom Off / On (1x ~ 16x)
Reverse Off / H-Rev / V-Rev / HV-Rev
Profile Basic, Day & Night, Backlight, ITS, Indoor, User
Communication Coaxial control (SPC-300 compatible)
Protocol Coax : Pelco-C (Coaxitron)
Environmental
Ø1Ø11199..88(4(.472.7")2") Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10%)
Power Consumption Max. 3.5W
Mechanical
Color / Material Ivory / Aluminum, Plastic
Dimensions (WxH) Ø119.8 x 101.8mm (Ø4.72" x 4.01")
Weight 520g (1.15 lb)
