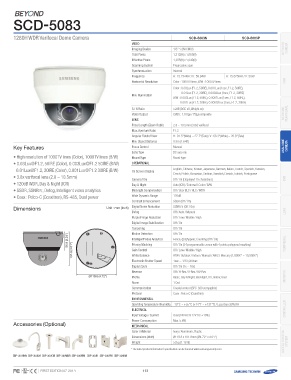

1280H WDR Varifocal Dome Camera SCD-5083N SCD-5083P
Video 1/3" 1.3M CMOS NETWORK
Imaging Device 1,312(H) x 1,069(V) Camera
Total Pixels 1,305(H) x 1,049(V)
Effective Pixels Progressive scan H : 15.625KHz / V : 50Hz
Scanning System Internal
Synchronization H : 15.734KHz / V : 59.94Hz NVR
Frequency Color : 1000TV lines, B/W : 1000TV lines
Horizontal Resolution
Min. Illumination Color : 0.03Lux (F1.2, 50IRE), 0.001Lux (1sec, F1.2, 50IRE),
0.01Lux (F1.2, 30IRE), 0.0003Lux (1sec, F1.2, 30IRE)
B/W : 0.003Lux (F1.2, 50IRE), 0.0001Lux (1sec, F1.2, 50IRE),
0.001Lux (F1.2, 30IRE), 0.00003Lux (1sec, F1.2, 30IRE)
S / N Ratio 52dB (AGC off, Weight on) NETWORK
PERIPHERAL
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 2.8 ~ 10.5mm (3.8x) varifocal
Max. Aperture Ratio F1.2
Angular Field of View H : 91.5°(Wide) ~ 27.7°(Tele) / V : 68.3°(Wide) ~ 20.8°(Tele)
Min. Object Distance 0.5m (1.64ft) Analogue
Camera
Key Features Focus Control Manual
• High resolution of 1000TV lines (Color), 1000TV lines (B/W) Lens Type DC auto iris
• 0.03Lux@F1.2, 50IRE (Color), 0.003Lux@F1.2 50IRE (B/W)
Mount Type Board type
0.01Lux@F1.2, 30IRE (Color), 0.001Lux@F1.2 30IRE (B/W)
• 3.8x varifocal lens (2.8 ~ 10.5mm) Operational
• 120dB WDR, Day & Night (ICR)
• SSDR, SSNRIV, Defog, Intelligent video analytics On Screen Display English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Russian,
• Coax : Pelco-C (Coaxitron), RS-485, Dual power Czech, Polish, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
Camera Title Off / On (Displayed 15 characters) DVR
Day & Night Auto (ICR) / External / Color / B/W
Backlight Compensation Off / User BLC / HLC / WDR
Wide Dynamic Range 120dB
Contrast Enhancement SSDR (Off / On)
Dimensions Unit : mm (inch) Digital Noise Reduction SSNR IV (Off / On) LENS
Defog Off / Auto / Manual
Purple Fringe Reduction Off / Low / Middle / High
Digital Image Stabilization Off / On
Tampering Off / On
5566..99( (2.22.4"2)4") Motion Detection Off / On
10110.1.88((44..001"1)")
Intelligent Video Analytics Fence, (Dis)Appear, Counting (Off / On) PERIPHERAL
Privacy Masking Off / On (24 programmable zones with 4 points polygonal masking)
Gain Control Off / Low / Middle / High
White Balance ATW / Outdoor / Indoor / Manual / AWC / Mercury (1,800K° ~ 10,500K°)
Electronic Shutter Speed 1sec ~ 1/12,000sec
Digital Zoom Off / On (1x ~ 16x)
Reverse Off / H-Rev / V-Rev / HV-Rev MONITOR
Ø1Ø11199..88(4(.472.7")2") Profile Basic, Day & Night, Backlight, ITS, Indoor, User
Accessories (Optional) Alarm 1 Out
Communication Coaxial control (SPC-300 compatible)
Protocol Coax : Pelco-C (Coaxitron)
Environmental CONTROLLER
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10%)
Power Consumption Max. 5.6W
Mechanical
Color / Material Ivory / Aluminum, Plastic Access Control
System
Dimensions (WxH) Ø119.8 x 101.8mm (Ø4.72" x 4.01")
Weight 535g (1.18 lb)
