P. 118
-3080/2080

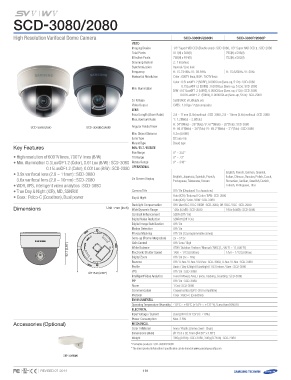

High Resolution Varifocal Dome Camera SCD-3080N/2080N SCD-3080P/2080P
Video 1/3" Super HAD CCD (Double scan) : SCD-3080, 1/3" Super HAD CCD II : SCD-2080
Imaging Device
Total Pixels 811(H) x 508(V) 795(H) x 596(V)
Effective Pixels
Scanning System 768(H) x 494(V) 752(H) x 582(V)
Synchronization
Frequency 2 : 1 Interlace
Horizontal Resolution
Internal / Line lock
H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Color : 600TV lines, B/W : 700TV lines
Min. Illumination Color : 0.3Lux@F1.2 (50IRE), 0.0006Lux (Sens-up, 512x) : SCD-3080
0.15Lux@F1.2 (50IRE) : 0.0003Lux (Sens-up, 512x) : SCD-2080
B/W : 0.01Lux@F1.2 (50IRE), 0.00002Lux (Sens-up, 512x) : SCD-3080
0.001Lux@F1.2 (50IRE), 0.000002Lux (Sens-up, 512x) : SCD-2080
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 2.8 ~ 11mm (3.9x) varifocal : SCD-3080, 2.8 ~ 10mm (3.6x) varifocal : SCD-2080
Max. Aperture Ratio 1 : 1.2(Wide) ~ 2.8(Tele)
SCD-3080/2080 SCD-3080B/2080B Angular Field of View H : 94°(Wide) ~ 26°(Tele) / V : 67°(Wide) ~ 20°(Tele) : SCD-3080
H : 94.4°(Wide) ~ 28°(Tele) / V : 69.2°(Wide) ~ 21°(Tele) : SCD-2080
Min. Object Distance 0.2m (0.66ft)
DC auto iris
Lens Type Board type
Key Features Mount Type 0° ~ 352°
Pan / Tilt / Rotate 0° ~ 73°
0° ~ 348°
• High resolution of 600TV lines, 700TV lines (B/W) Pan Range
Tilt Range
• Min. illumination 0.3Lux@F1.2 (Color), 0.01Lux (B/W) : SCD-3080 Rotate Range
0.15Lux@F1.2 (Color), 0.001Lux (B/W) : SCD-2080 Operational
English, French, German, Spanish,
• 3.9x varifocal lens (2.8 ~ 11mm) : SCD-3080 On Screen Display English, Japanese, Spanish, French, Italian, Chinese, Russian, Polish, Czech,
Portuguese, Taiwanese, Korean Romanian, Serbian, Swedish, Danish,
3.6x varifocal lens (2.8 ~ 10mm) : SCD-2080 Turkish, Portuguese, Thai
• WDR, VPS, Intelligent video analytics : SCD-3080
• True Day & Night (ICR), MD, SSNRIII Camera Title Off / On (Displayed 15 characters)
• Coax : Pelco-C (Coaxitron), Dual power Day & Night
9 92.2.77 ((33..665")5") Auto (ICR) / External / Color / B/W : SCD-3080
Auto (ICR) / Color / B/W : SCD-2080
92.7 (3.65")
Dimensions Unit : mm (inch) Backlight Compensation Off / User BLC / HLC / WDR : SCD-3080, Off / BLC / HLC : SCD-2080
ØØ111155..88(4(.456.5")6")
Ø115.8 (4.56") Wide Dynamic Range 128x (52dB) : SCD-3080 160x (54dB) : SCD-3080
Accessories (Optional) Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNRIII (Off / On)
Digital Image Stabilization Off / On
Motion Detection Off / On
Privacy Masking Off / On (12 programmable zones)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / Low / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Electronic Shutter Speed 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Digital Zoom Off / On (1x ~ 16x)
Reverse Off / H-Rev / V-Rev / HV-Rev : SCD-3080, H-Rev / V-Rev : SCD-2080
Profile Basic / Day & Night / Backlight / ITS / Indoor / User : SCD-3080
VPS Off / On : SCD-3080
Intelligent Video Analytics Fixed / Moved, Area, Fence, Tracking, Counting : SCD-3080
PIP Off / On : SCD-3080
Alarm 1 Out : SCD-3080
Communication Coaxial control (SPC-300 compatible)
Protocol Coax : Pelco-C (Coaxitron)
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10%)
Power Consumption Max. 3.5W
Mechanical
Color / Material Ivory / Plastic (Dome cover : Clear)
Dimensions (WxH) Ø115.8 x 92.7mm (Ø4.56" x 3.65")
Weight 365g (0.8 lb) : SCD-3080, 345g (0.76 lb) : SCD-2080
* Derivative products : SCD-3080B/2080B
* The latest product information / specification can be found at www.samsungsecurity.com
SBP-300WM0
REVISED 07-2014 118
