Page 122 - Catalog Samsung 2014
P. 122
-2020

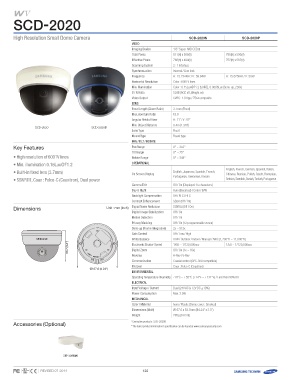

High Resolution Small Dome Camera SCD-2020N SCD-2020P
Video 1/3" Super HAD CCD II 795(H) x 596(V)
Imaging Device 811(H) x 508(V) 752(H) x 582(V)
Total Pixels
Effective Pixels 768(H) x 494(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock H : 15.625KHz / V : 50Hz
Frequency H : 15.734KHz / V : 59.94Hz
Horizontal Resolution Color : 600TV lines
Min. Illumination Color : 0.15Lux@F1.2 (50IRE), 0.0006Lux (Sens-up, 256x)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3.7mm (Fixed)
Max. Aperture Ratio F2.0
Angular Field of View H : 71˚ / V : 52˚
SCD-2020 SCD-2020B Min. Object Distance 0.4m (1.31ft)
Lens Type Fixed
Mount Type Board type
Pan / Tilt / Rotate
Key Features Pan Range 0° ~ 352°
• High resolution of 600TV lines Tilt Range 0° ~ 75°
• Min. illumination 0.15Lux@F1.2 Rotate Range 0° ~ 348°
• Built-in fixed lens (3.7mm)
• SSNRIII, Coax : Pelco-C (Coaxitron), Dual power Operational
On Screen Display English, Japanese, Spanish, French, English, French, German, Spanish, Italian,
Portuguese, Taiwanese, Korean Chinese, Russian, Polish, Czech, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese
Camera Title Off / On (Displayed 15 characters)
Day & Night Auto (Electrical) / Color / B/W
838.3.77((33..33")") Backlight Compensation Off / BLC / HLC
Contrast Enhancement SSDR (Off / On)
83.7 (3.3")
Dimensions Unit : mm (inch) Digital Noise Reduction SSNRIII (Off / On)
Digital Image Stabilization Off / On
Motion Detection Off / On
Privacy Masking Off / On (12 programmable zones)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / Low / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Electronic Shutter Speed 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Digital Zoom Off / On (1x ~ 16x)
Reverse H-Rev / V-Rev
ØØ110077..66((44.2.42"4) ") Communication Coaxial control (SPC-300 compatible)
Protocol Coax : Pelco-C (Coaxitron)
Ø107.6 (4.24")
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10%)
Power Consumption Max. 3.5W
Mechanical
Color / Material Ivory / Plastic (Dome cover : Smoked)
Dimensions (WxH) Ø107.6 x 83.7mm (Ø4.24" x 3.3")
Weight 285g (0.63 lb)
Accessories (Optional) * Derivative products : SCD-2020B
* The latest product information / specification can be found at www.samsungsecurity.com
SBP-300WM0 122
REVISED 07-2014
