P. 124
-2010F

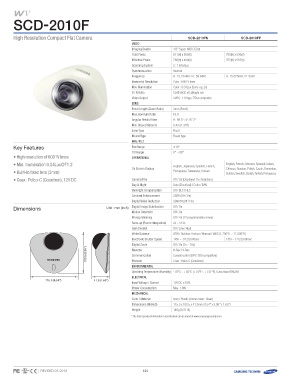

High Resolution Compact Flat Camera SCD-2010FN SCD-2010FP
Video 1/3" Super HAD CCD II 795(H) x 596(V)
Imaging Device 811(H) x 508(V)
Total Pixels
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Scanning System 2 : 1 Interlace H : 15.625KHz / V : 50Hz
Synchronization Internal
Frequency H : 15.734KHz / V : 59.94Hz
Horizontal Resolution Color : 600TV lines
Min. Illumination Color : 0.04Lux (Sens-up, 2x)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3mm (Fixed)
Max. Aperture Ratio F2.0
Angular Field of View H : 89.5° / V : 67.2°
Min. Object Distance 0.4m (1.31ft)
Lens Type Fixed
Mount Type Board type
Key Features Pan / Tilt ±10°
• High resolution of 600TV lines Pan Range 0° ~ 90°
Tilt Range
Operational
• Min. Illumination 0.04Lux@F1.2 On Screen Display English, Japanese, Spanish, French, English, French, German, Spanish, Italian,
• Built-in fixed lens (3mm) Portuguese, Taiwanese, Korean Chinese, Russian, Polish, Czech, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese
• Coax : Pelco-C (Coaxitron), 12V DC Camera Title Off / On (Displayed 15 characters)
Day & Night Auto (Electrical) / Color / B/W
Backlight Compensation Off / BLC / HLC
Dimensions Unit : mm (inch) Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNRIII (Off / On)
Digital Image Stabilization Off / On
Motion Detection Off / On
Privacy Masking Off / On (12 programmable zones)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control
White Balance Off / Low / High
Electronic Shutter Speed
ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
110000..55((3.3.969")6") Digital Zoom Off / On (1x ~ 16x)
Reverse H-Rev / V-Rev
Communication Coaxial control (SPC-300 compatible)
Protocol Coax : Pelco-C (Coaxitron)
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
111155..33 ((44.5.544")") 4411.9.9 ((11..6655"")) Electrical 12V DC ±10%
Input Voltage / Current Max. 1.8W
Power Consumption
Mechanical
Color / Material Ivory / Plastic (Dome cover : Clear)
Dimensions (WxHxD) 115.3 x 100.5 x 41.9mm (4.54" x 3.96" x 1.65")
Weight 140g (0.31 Ib)
* The latest product information / specification can be found at www.samsungsecurity.com
REVISED 03-2013 124
