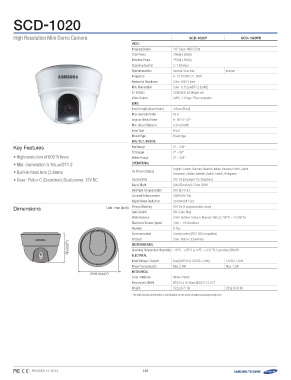

High Resolution Mini Dome Camera SCD-1020P SCD-1020PD
Video
Imaging Device 1/3" Super HAD CCD II
Total Pixels 795(H) x 596(V)
Effective Pixels 752(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock Internal
Frequency H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 600TV lines
Min. Illumination Color : 0.15Lux@F1.2 (50IRE)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3.6mm (Fixed)
Max. Aperture Ratio F2.0
Angular Field of View H : 56°/ V : 42°
Min. Object Distance 0.2m (0.66ft)
Lens Type Fixed
Mount Type Board type
Pan / Tilt / Rotate
Key Features Pan Range 0° ~ 349°
• High resolution of 600TV lines Tilt Range 0° ~ 90°
• Min. illumination 0.15Lux@F1.2
• Built-in fixed lens (3.6mm) Rotate Range 0° ~ 338°
• Coax : Pelco-C (Coaxitron), Dual power, 12V DC
Operational
On Screen Display English, French, German, Spanish, Italian, Russian, Polish, Czech,
Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
Camera Title Off / On (Displayed 15 characters)
Day & Night Auto (Electrical ) / Color / B/W
Backlight Compensation Off / BLC / HLC
Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction 2D DNR (Off / On)
Dimensions Unit : mm (inch) Privacy Masking Off / On (4 programmable zones)
Gain Control Off / Low / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Electronic Shutter Speed 1/50 ~ 1/120,000sec
Reverse H-Rev
Communication Coaxial control (SPC-300 compatible)
7788.0( (3.3.0077"")) Protocol Coax : Pelco-C (Coaxitron)
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10%) 12V DC ±10%
Power Consumption Max. 2.3W Max. 1.2W
ØØ110022.(04(.40.20"2)") Mechanical
Color / Material White / Plastic
Dimensions (WxH) Ø102.0 x 78.0mm (Ø4.02" x 3.07")
Weight 322g (0.71 lb) 295g (0.65 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
REVISED 12-2013 126
