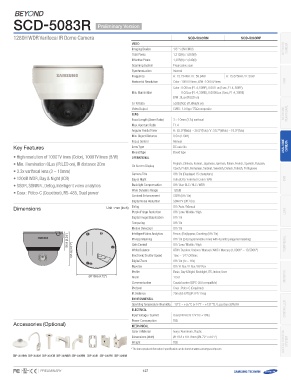

1280H WDR Varifocal IR Dome Camera SCD-5083RN SCD-5083RP
Video NETWORK
Camera
Imaging Device 1/3" 1.3M CMOS
Total Pixels 1,312(H) x 1,069(V)
Effective Pixels 1,305(H) x 1,049(V)
Scanning System Progressive scan
Synchronization Internal
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 1000TV lines, B/W : 1000TV lines NVR
Min. Illumination Color : 0 .05Lux (F1.4, 50IRE), 0.001Lux (1sec, F1.4, 50IRE),
0.02Lux (F1.4, 30IRE), 0.0006Lux (1sec, F1.4, 30IRE)
B/W : 0 Lux (IR LED on)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite NETWORK
Lens PERIPHERAL
Focal Length (Zoom Ratio) 3 ~ 10mm (3.3x) varifocal
Max. Aperture Ratio F1.4
Angular Field of View H : 82.0°(Wide) ~ 26.5°(Tele) / V : 59.7°(Wide) ~ 19.9°(Tele)
Min. Object Distance 0.5m (1.64ft)
Key Features Focus Control Manual Analogue
• High resolution of 1000TV lines (Color), 1000TV lines (B/W) Lens Type DC auto iris Camera
Mount Type Board type
Operational
• Min. illumination 0Lux (IR LED on), IR distance 20m On Screen Display English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Russian, DVR
• 3.3x varifocal lens (3 ~ 10mm) Czech, Polish, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
• 120dB WDR, Day & Night (ICR) Camera Title
Day & Night Off / On (Displayed 15 characters)
Auto (ICR) / External / Color / B/W
• SSDR, SSNRIV, Defog, Intelligent video analytics Backlight Compensation Off / User BLC / HLC / WDR
• Coax : Pelco-C (Coaxitron), RS-485, Dual power Wide Dynamic Range 120dB
Contrast Enhancement SSDR (Off / On)
Dimensions Unit : mm (inch) Digital Noise Reduction SSNR IV (Off / On) LENS
Defog Off / Auto / Manual
Purple Fringe Reduction
Off / Low / Middle / High
Digital Image Stabilization Off / On
Tampering Off / On
Motion Detection Off / On
5566..99( (2.22.4"2)4") Intelligent Video Analytics Fence, (Dis)Appear, Counting (Off / On)
10110.1.88((44..001"1)")
Privacy Masking Off / On (24 programmable zones with 4 points polygonal masking) PERIPHERAL
Gain Control Off / Low / Middle / High
White Balance ATW / Outdoor / Indoor / Manual / AWC / Mercury (1,800K° ~ 10,500K°)
Electronic Shutter Speed 1sec ~ 1/12,000sec
Digital Zoom Off / On (1x ~ 16x)
Reverse Off / H-Rev / V-Rev / HV-Rev
Ø1Ø11199..88(4(.472.7")2") Profile Basic, Day & Night, Backlight, ITS, Indoor, User MONITOR
Alarm 1 Out
Communication Coaxial control (SPC-300 compatible)
Protocol Coax : Pelco-C (Coaxitron)
IR Distance 20m (65.62ft) (IR LED 12ea)
Environmental CONTROLLER
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10%)
Accessories (Optional) Power Consumption TBD
Mechanical
Color / Material Ivory / Aluminum, Plastic Access Control
System
Dimensions (WxH) Ø119.8 x 101.8mm (Ø4.72" x 4.01")
Weight TBD
