P. 132
-1020R

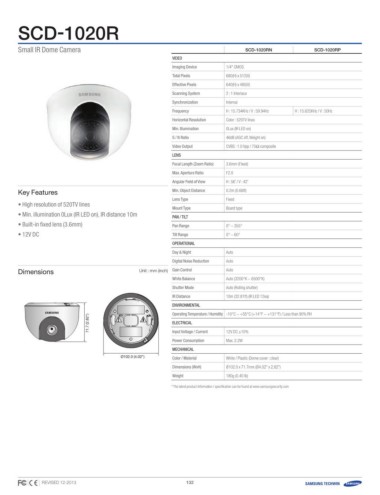

Small IR Dome Camera SCD-1020RN SCD-1020RP
Video
Imaging Device 1/4" CMOS
Total Pixels 680(H) x 512(V)
Effective Pixels 640(H) x 480(V)
Scanning System 2 : 1 Interlace
Synchronization Internal
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 520TV lines
Min. Illumination 0Lux (IR LED on)
S / N Ratio 46dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3.6mm (Fixed)
Max. Aperture Ratio F2.0
Angular Field of View H : 56˚ / V : 42˚
Key Features Min. Object Distance 0.2m (0.66ft)
Lens Type Fixed
• High resolution of 520TV lines Mount Type Board type
• Min. illumination 0Lux (IR LED on), IR distance 10m Pan / Tilt
• Built-in fixed lens (3.6mm) Pan Range 0° ~ 355°
• 12V DC Tilt Range 0° ~ 60°
Operational
Day & Night Auto
Digital Noise Reduction Auto
Dimensions Unit : mm (inch) Gain Control Auto
White Balance Auto (3200°K ~ 6500°K)
Shutter Mode Auto (Rolling shutter)
IR Distance 10m (32.81ft) (IR LED 12ea)
Environmental
7711..77 ((22..8822"")) Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
Input Voltage / Current 12V DC ±10%
Power Consumption Max. 2.2W
ØØ110022.0.0(Ø(44..0022"")) Mechanical White / Plastic (Dome cover : clear)
Color / Material
Dimensions (WxH) Ø102.0 x 71.7mm (Ø4.02" x 2.82")
Weight 180g (0.40 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
REVISED 12-2013 132
