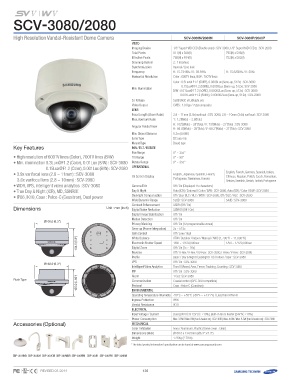

High Resolution Vandal-Resistant Dome Camera SCV-3080N/2080N SCV-3080P/2080P
Video 1/3" Super HAD CCD (Double scan) : SCV-3080, 1/3" Super HAD CCD II : SCV-2080
Imaging Device
Total Pixels 811(H) x 508(V) 795(H) x 596(V)
Effective Pixels
Scanning System 768(H) x 494(V) 752(H) x 582(V)
Synchronization
Frequency 2 : 1 Interlace
Horizontal Resolution
Internal / Line lock
H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Color : 600TV lines, B/W : 700TV lines
Min. Illumination Color : 0.3Lux@ F1.2 (50IRE), 0.0006Lux (Sens-up, 512x) : SCV-3080
0.15Lux@ F1.2 (50IRE), 0.0003Lux (Sens-up, 512x) : SCV-2080
B/W : 0 .01Lux@ F1.2 (50IRE), 0.00002Lux (Sens-up, 512x) : SCV-3080
0.001Lux@ F1.2 (50IRE), 0.000002Lux (Sens-up, 512x) : SCV-2080
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 2.8 ~ 11mm (3.9x) varifocal : SCV-3080, 2.8 ~ 10mm (3.6x) varifocal : SCV-2080
Max. Aperture Ratio 1 : 1.2(Wide) ~ 2.8(Tele)
Key Features Angular Field of View H : 102˚(Wide) ~ 28˚(Tele) / V : 73˚(Wide) ~ 21˚(Tele) : SCV-3080
H : 94.4˚(Wide) ~ 28˚(Tele) / V : 69.2˚(Wide) ~ 21˚(Tele) : SCV-2080
• High resolution of 600TV lines (Color), 700TV lines (B/W) Min. Object Distance 0.2m (0.66ft)
• Min. illumination 0.3Lux@F1.2 (Color), 0.01Lux (B/W) : SCV-3080 Lens Type DC auto iris
0.15Lux@F1.2 (Color), 0.001Lux (B/W) : SCV-2080 Mount Type Board type
• 3.9x varifocal lens (2.8 ~ 11mm) : SCV-3080 Pan / Tilt / Rotate
Pan Range 0° ~ 355°
3.6x varifocal lens (2.8 ~ 10mm) : SCV-2080 Tilt Range 0° ~ 90°
• WDR, VPS, Intelligent video analytics : SCV-3080 Rotate Range 0° ~ 355°
• True Day & Night (ICR), MD, SSNRIII Operational
• IP66, IK10, Coax : Pelco-C (Coaxitron), Dual power
On Screen Display English, Japanese, Spanish, French, English, French, German, Spanish, Italian,
Portuguese, Taiwanese, Korean Chinese, Russian, Polish, Czech, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese
Camera Title Off / On (Displayed 15 characters)
Day & Night Auto (ICR) / External / Color / B/W : SCV-3080, Auto (ICR) / Color / B/W : SCV-2080
Backlight Compensation Off / User BLC / HLC / WDR : SCV-3080, Off / BLC / HLC : SCV-2080
Wide Dynamic Range 52dB : SCV-3080 54dB : SCV-3080
Dimensions Unit : mm (inch) Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNRIII (Off / On)
Digital Image Stabilization Off / On
ØØØ111666000...000 (((666...333""))") Motion Detection Off / On
Privacy Masking Off / On (12 programmable zones)
Sens-up (Frame Integration) 2x ~ 512x
1 13341.4.3554.((555..(353".)"3)") Gain Control Off / Low / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Electronic Shutter Speed 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Digital Zoom Off / On (1x ~ 16x)
Reverse Off / H-Rev / V-Rev / HV-Rev : SCV-3080, H-Rev / V-Rev : SCV-2080
Profile Basic / Day & Night / Backlight / ITS / Indoor / User : SCV-3080
ØØ116600..00 ((66..33")") VPS Off / On : SCV-3080
Ø160.0 (6.3") Intelligent Video Analytics Fixed / Moved, Area, Fence, Tracking, Counting : SCV-3080
PIP Off / On : SCV-3080
Flush Type 112215.25.05.(004(.(944..2"99)22")") Alarm 1 Out : SCV-3080
Communication Coaxial control (SPC-300 compatible)
Protocol Coax : Pelco-C (Coaxitron)
Environmental
Operating Temperature / Humidity -50°C ~ +55°C (-58°F ~ +131°F) / Less than 90% RH
Ingress Protection IP66
Vandal Resistance IK10
Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10%), Built-in fan & heater (24V AC±10%)
Power Consumption Max. 3.8W / Max. 8W (Fan & heater on) : SCV-3080, Max. 4.0W / Max. 8.3W (Fan & heater on) : SCV-2080
Accessories (Optional) Mechanical
Color / Material Ivory / Aluminum, Plastic (Dome cover : Clear)
Dimensions (WxH) Ø160.0 x 134.5mm (Ø6.3" x 5.3")
Weight 1.26Kg (2.78 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
