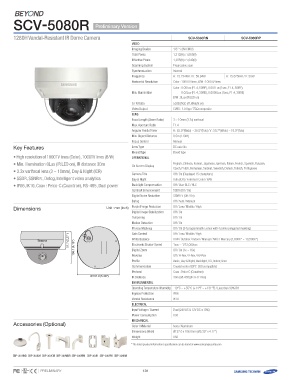

1280H Vandal-Resistant IR Dome Camera SCV-5080RN SCV-5080RP
Video 1/3" 1.3M CMOS
Imaging Device 1,312(H) x 1,069(V)
Total Pixels 1,305(H) x 1,049(V)
Effective Pixels Progressive scan
Scanning System
Synchronization Internal H : 15.625KHz / V : 50Hz
Frequency H : 15.734KHz / V : 59.94Hz
Horizontal Resolution Color : 1000TV lines, B/W : 1000TV lines
Min. Illumination Color : 0 .05Lux (F1.4, 50IRE), 0.001Lux (1sec, F1.4, 50IRE),
0.02Lux (F1.4, 30IRE), 0.0006Lux (1sec, F1.4, 30IRE)
B/W : 0 Lux (IR LED on)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3 ~ 10mm (3.3x) varifocal
Max. Aperture Ratio F1.4
Key Features Angular Field of View H : 82.0°(Wide) ~ 26.5°(Tele) / V : 59.7°(Wide) ~ 19.9°(Tele)
• High resolution of 1000TV lines (Color), 1000TV lines (B/W) Min. Object Distance 0.5m (1.64ft)
Focus Control Manual
Lens Type DC auto iris
Mount Type Board type
Operational
• Min. Illumination 0Lux (IR LED on), IR distance 30m On Screen Display English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Russian,
Czech, Polish, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
• 3.3x varifocal lens (3 ~ 10mm), Day & Night (ICR) Camera Title
Day & Night Off / On (Displayed 15 characters)
• SSDR, SSNRIV, Defog, Intelligent video analytics Backlight Compensation Auto (ICR) / External / Color / B/W
• IP66, IK10, Coax : Pelco-C (Coaxitron), RS-485, Dual power Contrast Enhancement Off / User BLC / HLC
Digital Noise Reduction SSDR (Off / On)
Defog SSNR IV (Off / On)
Off / Auto / Manual
Dimensions Unit : mm (inch) Purple Fringe Reduction Off / Low / Middle / High
Digital Image Stabilization Off / On
Tampering Off / On
Motion Detection Off / On
5577..77 ((2.2.272")7") Privacy Masking Off / On (24 programmable zones with 4 points polygonal masking)
11006.6.1 (14(.14.8")18") Gain Control Off / Low / Middle / High
White Balance ATW / Outdoor / Indoor / Manual / AWC / Mercury (1,800K° ~ 10,500K°)
Electronic Shutter Speed 1sec ~ 1/12,000sec
Digital Zoom Off / On (1x ~ 16x)
Reverse Off / H-Rev / V-Rev / HV-Rev
Profile Basic, Day & Night, Backlight, ITS, Indoor, User
ØØ113377..00(5(5.3.93")9") Communication Coaxial control (SPC-300 compatible)
Protocol Coax : Pelco-C (Coaxitron)
IR Distance 30m (98.43ft) (IR LED 12ea)
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Ingress Protection IP66
Vandal Resistance IK10
Electrical
Accessories (Optional) Input Voltage / Current Dual (24V AC & 12V DC ±10%)
Power Consumption TBD
Mechanical
Color / Material Ivory / Aluminum
Dimensions (WxH) Ø137.0 x 106.0mm (Ø5.39" x 4.17")
Weight TBD
* The latest product information / specification can be found at www.samsungsecurity.com
