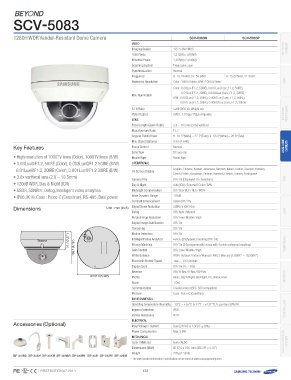

1280H WDR Vandal-Resistant Dome Camera SCV-5083N SCV-5083P
Video 1/3" 1.3M CMOS NETWORK
Imaging Device 1,312(H) x 1,069(V) Camera
Total Pixels 1,305(H) x 1,049(V)
Effective Pixels Progressive scan H : 15.625KHz / V : 50Hz
Scanning System Internal
Synchronization H : 15.734KHz / V : 59.94Hz NVR
Frequency Color : 1000TV lines, B/W : 1000TV lines
Horizontal Resolution
Min. Illumination Color : 0 .03Lux (F1.2, 50IRE), 0.001Lux (1sec, F1.2, 50IRE),
0.01Lux (F1.2, 30IRE), 0.0003Lux (1sec, F1.2, 30IRE)
B/W : 0.003Lux (F1.2, 50IRE), 0.0001Lux (1sec, F1.2, 50IRE),
0.001Lux (F1.2, 30IRE), 0.00003Lux (1sec, F1.2, 30IRE)
S / N Ratio 52dB (AGC off, Weight on) NETWORK
PERIPHERAL
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 2.8 ~ 10.5mm (3.8x) varifocal
Max. Aperture Ratio F1.2
Angular Field of View H : 91.5°(Wide) ~ 27.7°(Tele) / V : 68.3°(Wide) ~ 20.8°(Tele)
Min. Object Distance 0.5m (1.64ft) Analogue
Camera
Key Features Focus Control Manual
• High resolution of 1000TV lines (Color), 1000TV lines (B/W) Lens Type DC auto iris
Mount Type Board type
• 0.03Lux@F1.2, 50IRE (Color), 0.003Lux@F1.2 50IRE (B/W) Operational
0.01Lux@F1.2, 30IRE (Color), 0.001Lux@F1.2 30IRE (B/W) On Screen Display English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Russian, DVR
Czech, Polish, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
• 3.8x varifocal lens (2.8 ~ 10.5mm) Camera Title
Day & Night Off / On (Displayed 15 characters)
• 120dB WDR, Day & Night (ICR) Backlight Compensation Auto (ICR) / External / Color / B/W
Wide Dynamic Range Off / User BLC / HLC / WDR
• SSDR, SSNRIV, Defog, Intelligent video analytics Contrast Enhancement 120dB
• IP66, IK10, Coax : Pelco-C (Coaxitron), RS-485, Dual power SSDR (Off / On)
Dimensions Unit : mm (inch) Digital Noise Reduction SSNR IV (Off / On) LENS
Defog Off / Auto / Manual
Purple Fringe Reduction Off / Low / Middle / High
Digital Image Stabilization Off / On
Tampering Off / On
5577..77 ((2.2.272")7") Motion Detection Off / On
11006.6.1 (14(.14.8")18")
Intelligent Video Analytics Fence, (Dis)Appear, Counting (Off / On) PERIPHERAL
Privacy Masking Off / On (24 programmable zones with 4 points polygonal masking)
Gain Control Off / Low / Middle / High
White Balance ATW / Outdoor / Indoor / Manual / AWC / Mercury (1,800K° ~ 10,500K°)
Electronic Shutter Speed 1sec ~ 1/12,000sec
Digital Zoom Off / On (1x ~ 16x)
ØØ113377..00(5(5.3.93")9") Reverse Off / H-Rev / V-Rev / HV-Rev MONITOR
Profile Basic, Day & Night, Backlight, ITS, Indoor, User
Alarm 1 Out
Communication Coaxial control (SPC-300 compatible)
Protocol Coax : Pelco-C (Coaxitron)
Environmental CONTROLLER
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Ingress Protection IP66
Vandal Resistance IK10
Accessories (Optional) Electrical Dual (24V AC & 12V DC ±10%)
Input Voltage / Current
Power Consumption Max. 5.6W Access Control
System
Mechanical
Color / Material Ivory / ALDC
Dimensions (WxH) Ø137.0 x 106.1mm (Ø5.39" x 4.18")
Weight 720g (1.59 lb)
SBP-301HM2 SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300B SBP-300PM SBP-300KM
* The latest product information / specification can be found at www.samsungsecurity.com
