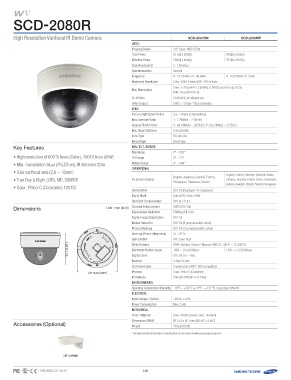

High Resolution Varifocal IR Dome Camera SCD-2080RN SCD-2080RP
Video 1/3" Super HAD CCD II 795(H) x 596(V)
Imaging Device 811(H) x 508(V) 752(H) x 582(V)
Total Pixels 768(H) x 494(V)
Effective Pixels 2 : 1 Interlace H : 15.625KHz / V : 50Hz
Scanning System Internal
Synchronization H : 15.734KHz / V : 59.94Hz
Frequency Color : 600TV lines, B/W : 700TV lines
Horizontal Resolution
Min. Illumination Color : 0.15Lux@F1.2 (50IRE), 0.0003Lux (Sens-up, 512x)
B/W : 0Lux (IR LED on)
Key Features S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
• High resolution of 600TV lines (Color), 700TV lines (B/W) Lens
• Min. illumination 0Lux (IR LED on), IR distance 20m Focal Length (Zoom Ratio) 2.8 ~ 10mm (3.6x) varifocal
• 3.6x varifocal lens (2.8 ~ 10mm) Max. Aperture Ratio 1 : 1.2(Wide) ~ 2.8(Tele)
• True Day & Night (ICR), MD, SSNRIII Angular Field of View H : 94.4˚(Wide) ~ 28˚(Tele) / V : 69.2˚(Wide) ~ 21˚(Tele)
• Coax : Pelco-C (Coaxitron), 12V DC Min. Object Distance 0.2m (0.66ft)
Lens Type DC auto iris
Mount Type Board type
Pan / Tilt / Rotate
Pan Range 0° ~ 352°
Tilt Range 0° ~ 73°
Rotate Range 0° ~ 348°
Operational
On Screen Display English, Japanese, Spanish, French, English, French, German, Spanish, Italian,
Portuguese, Taiwanese, Korean Chinese, Russian, Polish, Czech, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese
Camera Title Off / On (Displayed 15 characters)
Day & Night Auto (ICR) / Color / B/W
9 92.2.77 ((33..665")5") Backlight Compensation Off / BLC / HLC
Dimensions 92.7 (3.65")Unit : mm (inch)Contrast EnhancementSSDR (Off / On)
Digital Noise Reduction SSNRIII (Off / On)
Digital Image Stabilization Off / On
Motion Detection Off / On (8 programmable zones)
Privacy Masking Off / On (12 programmable zones)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / Low / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Electronic Shutter Speed 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Digital Zoom Off / On (1x ~ 16x)
Reverse H-Rev / V-Rev
Communication Coaxial control (SPC-300 compatible)
ØØ111155..88(4(.456.5")6") Protocol Coax : Pelco-C (Coaxitron)
Ø115.8 (4.56") IR Distance 20m (65.62ft) (IR LED 12ea)
Accessories (Optional) Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
Input Voltage / Current 12V DC ±10%
Power Consumption Max. 3.5W
Mechanical
Color / Material Ivory / Plastic (Dome cover : Smoked)
Dimensions (WxH) Ø115.8 x 92.7mm (Ø4.56" x 3.65")
Weight 310g (0.68 lb)
