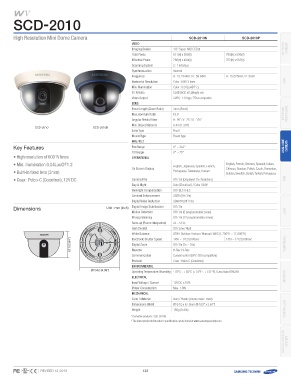

High Resolution Mini Dome Camera SCD-2010N SCD-2010P
Video NETWORK
Camera
Imaging Device 1/3" Super HAD CCD II 795(H) x 596(V)
Total Pixels 811(H) x 508(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 600TV lines NVR
Min. Illumination Color : 0.04Lux@F1.2
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3mm (Fixed) NETWORK
PERIPHERAL
Max. Aperture Ratio F2.0
Angular Field of View H : 95˚ / V : 75˚ / D : 120˚
SCD-2010 SCD-2010B Min. Object Distance 0.4m (1.31ft)
Lens Type Fixed
Mount Type Board type
Key Features Pan / Tilt 0° ~ 352° Analogue
• High resolution of 600TV lines Pan Range 0° ~ 75° Camera
Tilt Range
Operational
• Min. illumination 0.04Lux@F1.2 On Screen Display English, Japanese, Spanish, French, English, French, German, Spanish, Italian,
• Built-in fixed lens (3mm) Portuguese, Taiwanese, Korean Chinese, Russian, Polish, Czech, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese
• Coax : Pelco-C (Coaxitron), 12V DC Camera Title Off / On (Displayed 15 characters) DVR
Day & Night Auto (Electrical ) / Color / B/W
Backlight Compensation Off / BLC / HLC
Contrast Enhancement SSDR (Off / On)
Dimensions Unit : mm (inch) Digital Noise Reduction SSNRIII (Off / On) LENS
Digital Image Stabilization Off / On
Motion Detection
Off / On (8 programmable zones)
104.0 (4.09") Privacy Masking Off / On (12 programmable zones)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / Low / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
676.70. (02(.2.6644")") Electronic Shutter Speed 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec PERIPHERAL
67.0 (2.64")
Digital Zoom Off / On (1x ~ 16x)
Reverse H-Rev / V-Rev
Communication Coaxial control (SPC-300 compatible)
Protocol Coax : Pelco-C (Coaxitron)
Ø11004.0 (44..0099"") ) Environmental MONITOR
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
Input Voltage / Current 12V DC ±10%
Power Consumption Max. 1.8W
Mechanical
Color / Material Ivory / Plastic (Dome cover : clear) CONTROLLER
Dimensions (WxH) Ø104.0 x 67.0mm (Ø4.09" x 2.64")
Weight 180g (0.4 lb)
* Derivative products : SCD-2010B
* The latest product information / specification can be found at www.samsungsecurity.com
