Page 121 - Catalog Samsung 2014
P. 121
-2022

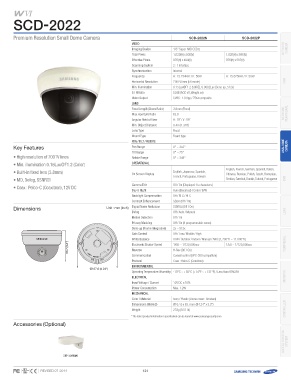

Premium Resolution Small Dome Camera SCD-2022N SCD-2022P
Video 1/3" Super HAD CCD II 1,020(H) x 596(V) NETWORK
Imaging Device 1,020(H) x 508(V) 976(H) x 582(V) Camera
Total Pixels 976(H) x 494(V)
Effective Pixels 2 : 1 Interlace
Scanning System
Synchronization Internal H : 15.625KHz / V : 50Hz
Frequency H : 15.734KHz / V : 50Hz
Horizontal Resolution 700TV lines (ER mode) NVR
Min. Illumination 0.15Lux@F1.2 (50IRE), 0.0002Lux (Sens-up, 512x)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3.8mm (Fixed) NETWORK
Max. Aperture Ratio F2.0 PERIPHERAL
Angular Field of View H : 78˚ / V : 59˚
Min. Object Distance 0.4m (1.31ft)
Lens Type Fixed
Key Features Mount Type Board type Analogue
• High resolution of 700TV lines Pan / Tilt / Rotate 0° ~ 352° Camera
• Min. illumination 0.15Lux@F1.2 (Color) Pan Range
• Built-in fixed lens (3.8mm)
• MD, Defog, SSNRIII Tilt Range 0° ~ 75°
• Coax : Pelco-C (Coaxitron), 12V DC Rotate Range 0° ~ 348°
Dimensions Operational
On Screen Display English, Japanese, Spanish, English, French, German, Spanish, Italian,
French, Portuguese, Korean Chinese, Russian, Polish, Czech, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese DVR
Camera Title Off / On (Displayed 15 characters)
Day & Night Auto (Electrical) / Color / B/W
838.3.77((33..33")") Backlight Compensation Off / BLC / HLC
Contrast Enhancement SSDR (Off / On)
83.7 (3.3")
Unit : mm (inch) Digital Noise Reduction SSNRIII (Off / On) LENS
Defog Off / Auto / Manual
Motion Detection Off / On
Privacy Masking Off / On (8 programmable zones)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / Low / Middle / High PERIPHERAL
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11.000°K)
Electronic Shutter Speed 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Reverse H-Rev (Off / On)
Communication Coaxial control (SPC-300 compatible)
Protocol Coax : Pelco-C (Coaxitron)
Environmental
ØØ110077..66((44.2.42"4) ")
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH MONITOR
Electrical 12V DC ±10%
Input Voltage / Current
Power Consumption Max. 1.2W
Mechanical
Color / Material Ivory / Plastic (Dome cover : Smoked) CONTROLLER
Dimensions (WxHxD) Ø107.6 x 83.7mm (Ø4.24" x 3.3")
Weight 233g (0.51 lb)
Ø107.6 (4.24") * The latest product information / specification can be found at www.samsungsecurity.com
Accessories (Optional)
Access Control
System
SBP-300WM0 121
REVISED 07-2014
