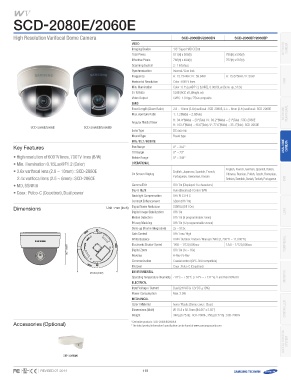

High Resolution Varifocal Dome Camera SCD-2080EN/2060EN SCD-2080EP/2060EP
Video NETWORK
Camera
Imaging Device 1/3" Super HAD CCD II 795(H) x 596(V)
Total Pixels 811(H) x 508(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 600TV lines NVR
Min. Illumination Color : 0.15Lux@F1.2 (50IRE), 0.0003Lux (Sens-up, 512x)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 2.8 ~ 10mm (3.6x) varifocal : SCD-2080E, 2.5 ~ 6mm (2.4x) varifocal : SCD-2060E NETWORK
PERIPHERAL
Max. Aperture Ratio 1 : 1.2(Wide) ~ 2.8(Tele)
SCD-2080E/2060E SCD-2080EB/2060EB Angular Field of View H : 94.4°(Wide) ~ 28°(Tele) / V : 69.2°(Wide) ~ 21°(Tele) : SCD-2080E
Lens Type H : 103.4˚(Wide) ~ 46.6˚(Tele) / V : 77.6˚(Wide) ~ 35.1˚(Tele) : SCD-2060E
DC auto iris
Mount Type Board type
Key Features Pan / Tilt / Rotate 0° ~ 352° Analogue
• High resolution of 600TV lines, 700TV lines (B/W) Pan Range 0° ~ 73° Camera
Tilt Range 0° ~ 348°
Rotate Range
• Min. illumination 0.15Lux@F1.2 (Color) Operational English, Japanese, Spanish, French, English, French, German, Spanish, Italian,
• 3.6x varifocal lens (2.8 ~ 10mm) : SCD-2080E On Screen Display Portuguese, Taiwanese, Korean Chinese, Russian, Polish, Czech, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese
2.4x varifocal lens (2.5 ~ 6mm) : SCD-2060E DVR
• MD, SSNRIII Camera Title Off / On (Displayed 15 characters)
• Coax : Pelco-C (Coaxitron), Dual power Day & Night Auto (Electrical) / Color / B/W
Backlight Compensation Off / BLC / HLC
92.7 (3.65") Contrast Enhancement SSDR (Off / On)
92.7 (3.65")
Dimensions Unit : mm (inch) Digital Noise Reduction SSNRIII (Off / On) LENS
Digital Image Stabilization Off / On
Motion Detection Off / On (8 programmable zones)
Privacy Masking Off / On (12 programmable zones)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / Low / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K) PERIPHERAL
Electronic Shutter Speed 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Digital Zoom Off / On (1x ~ 16x)
Reverse H-Rev / V-Rev
Communication Coaxial control (SPC-300 compatible)
Protocol Coax : Pelco-C (Coaxitron)
Ø115.8 (4.56") Environmental MONITOR
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10%)
Power Consumption Max. 3.5W
Mechanical CONTROLLER
Color / Material Ivory / Plastic (Dome cover : Clear)
Dimensions (WxH) Ø115.8 x 92.7mm (Ø4.56" x 3.65")
Ø115.8 (4.56") Weight 340g (0.75 lb) : SCD-2080E, 350g (0.77 lb) : SCD-2060E
Accessories (Optional) * Derivative products : SCD-2080EB/2060EB
* The latest product information / specification can be found at www.samsungsecurity.com
