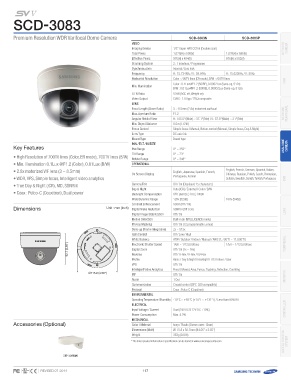

Premium Resolution WDR Varifocal Dome Camera SCD-3083N SCD-3083P
Video 1/3" Super HAD CCD II (Double scan) 1,028(H) x 596(V) NETWORK
Imaging Device 1,028(H) x 508(V) Camera
Total Pixels
Effective Pixels 976(H) x 494(V) 976(H) x 582(V)
Scanning System
Synchronization 2 : 1 Interlace / Progressive
Frequency
Horizontal Resolution Internal / Line lock
H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Color : 700TV lines (ER mode), B/W : 700TV lines NVR
Min. Illumination Color : 0 .1Lux@F1.2 (50IRE), 0.0002Lux (Sens-up, 512x)
B/W : 0 .01Lux@F1.2 (50IRE), 0.00002Lux (Sens-up, 512x)
S / N Ratio 52dB (AGC off, Weight on) NETWORK
Video Output CVBS : 1.0 Vpp / 75Ω composite PERIPHERAL
Lens
Key Features Focal Length (Zoom Ratio) 3 ~ 8.5mm (2.8x) motorized varifocal Analogue
Max. Aperture Ratio F1.2 Camera
• High Resolution of 700TV lines (Color, ER mode), 700TV lines (B/W) Angular Field of View H : 105.5°(Wide) ~ 37.1°(Tele) / V : 57.5°(Wide) ~ 21°(Tele)
• Min. Illumination 0.1Lux @F1.2 (Color), 0.01Lux (B/W) Min. Object Distance 0.5m (1.64ft)
• 2.8x motorized V/F lens (3 ~ 8.5mm) Focus Control Simple focus / Manual, Botton control (Manual, Simple focus, Day & Night)
• WDR, VPS, Simple focus, Intelligent video analytics Lens Type DC auto iris
• True Day & Night (ICR), MD, SSNRIII Mount Type Board type
• Coax : Pelco-C (Coaxitron), Dual power Pan / Tilt / Rotate
Pan Range 0° ~ 352°
Tilt Range 0° ~ 73°
Rotate Range 0° ~ 348°
Operational
On Screen Display English, Japanese, Spanish, French, English, French, German, Spanish, Italian,
Portuguese, Korean Chinese, Russian, Polish, Czech, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese DVR
Camera Title Off / On (Displayed 15 characters)
Day & Night Auto (ICR) / External / Color / B/W
Backlight Compensation Off / User BLC / HLC / WDR
9 92.2.77 ((33..665")5") Wide Dynamic Range 128x (52dB) 160x (54dB)
Dimensions 92.7 (3.65")Unit : mm (inch)Contrast EnhancementSSDR (Off / On)
Digital Noise Reduction SSNRIII (Off / On) LENS
Digital Image Stabilization Off / On
Motion Detection Built-in (in INTELLIGENCE menu)
Privacy Masking Off / On (12 programmable zones)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / Low / High PERIPHERAL
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Electronic Shutter Speed 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Digital Zoom Off / On (1x ~ 16x)
Reverse Off / H-Rev / V-Rev / HV-Rev
Profile Basic / Day & Night / Backlight / ITS / Indoor / User
VPS Off / On
ØØ111155..88(4(.456.5")6") Intelligent Video Analytics Fixed / Moved, Area, Fence, Tracking, Detection, Counting MONITOR
Ø115.8 (4.56") PIP Off / On
Accessories (Optional) Alarm 1 Out
Communication Coaxial control (SPC-300 compatible)
Protocol Coax : Pelco-C (Coaxitron)
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH CONTROLLER
Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10%)
Power Consumption Max. 4.2W
Mechanical
Color / Material Ivory / Plastic (Dome cover : Clear)
Dimensions (WxH) Ø115.8 x 92.7mm (Ø4.56" x 3.65") Access Control
System
Weight 363g (0.8 lb)
