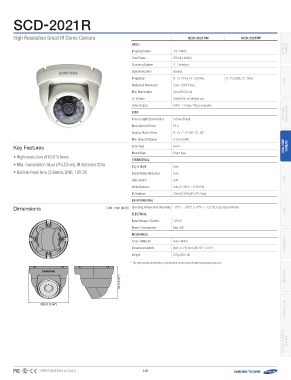

Page 129 - Catalog Samsung 2014

-2021R

High Resolution Small IR Dome Camera SCD-2021RN SCD-2021RP

Video NETWORK
Camera
Imaging Device 1/3" CMOS

Total Pixels 976(H) x 496(V)

Scanning System 2 : 1 Interlace

Synchronization Internal

Frequency H : 15.734Hz / V : 59.94Hz H : 15.625Hz / V : 50Hz NVR

Horizontal Resolution Color : 650TV lines

Min. Illumination 0Lux (IR LED on)

S / N Ratio 50dB (AGC off, Weight on)

Video Output CVBS : 1.0 Vpp / 75Ω composite NETWORK
PERIPHERAL
Lens

Focal Length (Zoom Ratio) 3.6mm (Fixed)

Max. Aperture Ratio F2.0

Angular Field of View H : 75.7° / V : 66° / D : 90°

Min. Object Distance 0.2m (0.66ft) Analogue
Camera
Key Features Lens Type Fixed
Mount Type Board type
• High resolution of 650TV lines Operational
• Min. Illumination 0Lux (IR LED on), IR distance 20m Day & Night Auto
• Built-in fixed lens (3.6mm), DNR, 12V DC Digital Noise Reduction Auto

Gain Control Auto DVR

White Balance Auto (3,200°K ~ 6,500°K)

IR Distance 20m (65.62ft) (IR LED 24ea)

Environmental

Dimensions Unit : mm (inch) Operating Temperature / Humidity -10°C ~ +50°C (+14°F ~ +122°F) / Less than 90% RH LENS
Electrical

Input Voltage / Current 12V DC

Power Consumption Max. 3W

78.0 (3.07") Mechanical PERIPHERAL

78.780.0( (33..007")7") Color / Material Ivory / Metal

Dimensions (WxH) Ø93.0 x 78.0mm (Ø3.66" x 3.07")

Weight 278g (0.61 lb)

* The latest product information / specification can be found at www.samsungsecurity.com

MONITOR

Ø9Ø393..00 ((33.6.66")6") CONTROLLER

Access Control
System

FIRST EDITION 12-2013 129
