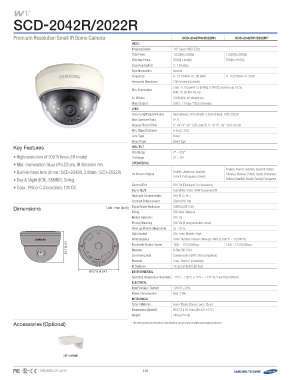

Premium Resolution Small IR Dome Camera SCD-2042RN/2022RN SCD-2042RP/2022RP
Video 1/3" Super HAD CCD II 1,020(H) x 596(V)
Imaging Device 1,020(H) x 508(V) 976(H) x 582(V)
Total Pixels 976(H) x 494(V)
Effective Pixels 2 : 1 Interlace
Scanning System
Synchronization Internal H : 15.625KHz / V : 50Hz
Frequency H : 15.734KHz / V : 59.94Hz
Horizontal Resolution 700TV lines (ER mode)
Min. Illumination Color : 0.15Lux@F1.2 (50IRE), 0.0002Lux (Sens-up, 512x)
B/W : 0 LUX (IR LED on)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 8mm (Fixed) : SCD-2042R, 3.8mm (Fixed) : SCD-2022R
Max. Aperture Ratio F2.0
Angular Field of View H : 34˚ / V : 26˚ : SCD-2042R, H : 78˚ / V : 59˚ : SCD-2022R
Min. Object Distance 0.4m (1.31ft)
Lens Type Fixed
Mount Type Board type
Pan / Tilt
Key Features
Pan Range 0° ~ 352°
• High resolution of 700TV lines (ER mode) Tilt Range 0° ~ 75°
• Min. Illumination 0Lux (IR LED on), IR distance 7m
• Built-in fixed lens (8mm : SCD-2042R, 3.8mm : SCD-2022R) Operational
• Day & Night (ICR), SSNRIII, Defog
• Coax : Pelco-C (Coaxitron), 12V DC On Screen Display English, Japanese, Spanish, English, French, German, Spanish, Italian,
French, Portuguese, Korean Chinese, Russian, Polish, Czech, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese
Camera Title Off / On (Displayed 15 characters)
Day & Night Auto (ICR) / Color / B/W / External D/N
Backlight Compensation Off / BLC / HLC
Contrast Enhancement SSDR (Off / On)
Dimensions Unit : mm (inch) Digital Noise Reduction SSNRIII (Off / On)
Defog Off / Auto / Manual
Motion Detection Off / On
Privacy Masking Off / On (8 programmable zones)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / Low / Middle / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,800°K ~ 10,500°K)
83.78(3.37.3") Electronic Shutter Speed 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
83.7 Reverse H-Rev (Off / On)
Communication Coaxial control (SPC-300 compatible)
Protocol Coax : Pelco-C (Coaxitron)
IR Distance 7m (22.97ft) (IR LED 8ea)
ØØ11007Ø..61607(4.6.24") Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
Input Voltage / Current 12V DC ±10%
Power Consumption Max. 3.6W
Mechanical
Color / Material Ivory / Plastic (Dome cover : Clear)
Dimensions (WxHxD) Ø107.6 x 83.7mm (Ø4.24" x 3.3")
Weight 240g (0.53 lb)
Accessories (Optional) * The latest product information / specification can be found at www.samsungsecurity.com
SBP-300WM0 130
REVISED 07-2014
