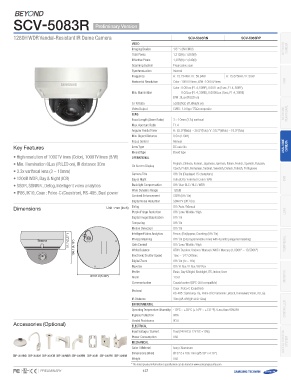

1280H WDR Vandal-Resistant IR Dome Camera SCV-5083RN SCV-5083RP
Video 1/3" 1.3M CMOS NETWORK
Imaging Device 1,312(H) x 1,069(V) Camera
Total Pixels 1,305(H) x 1,049(V)
Effective Pixels Progressive scan H : 15.625KHz / V : 50Hz
Scanning System Internal
Synchronization H : 15.734KHz / V : 59.94Hz NVR
Frequency Color : 1000TV lines, B/W : 1000TV lines
Horizontal Resolution
Min. Illumination Color : 0.05Lux (F1.4, 50IRE), 0.001Lux (1sec, F1.4, 50IRE),
0.02Lux (F1.4, 30IRE), 0.0006Lux (1sec, F1.4, 30IRE)
B/W : 0 Lux (IR LED on)
S / N Ratio 52dB (AGC off, Weight on) NETWORK
Video Output CVBS : 1.0 Vpp / 75Ω composite PERIPHERAL
Lens
Key Features Focal Length (Zoom Ratio) 3 ~ 10mm (3.3x) varifocal Analogue
Max. Aperture Ratio F1.4 Camera
• High resolution of 1000TV lines (Color), 1000TV lines (B/W) Angular Field of View H : 82.0°(Wide) ~ 26.5°(Tele) / V : 59.7°(Wide) ~ 19.9°(Tele)
• Min. Illumination 0Lux (IR LED on), IR distance 30m Min. Object Distance 0.5m (1.64ft) DVR
• 3.3x varifocal lens (3 ~ 10mm) Focus Control Manual
• 120dB WDR, Day & Night (ICR) Lens Type DC auto iris
• SSDR, SSNRIV, Defog, Intelligent video analytics Mount Type Board type
• IP66, IK10, Coax : Pelco-C (Coaxitron), RS-485, Dual power Operational
English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Russian,
Dimensions Unit : mm (inch) On Screen Display Czech, Polish, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese LENS
Off / On (Displayed 15 characters)
5577..77 ((2.2.272")7") Camera Title Auto (ICR) / External / Color / B/W PERIPHERAL
11006.6.1 (14(.14.8")18") Day & Night Off / User BLC / HLC / WDR
Backlight Compensation 120dB
ØØ113377..00(5(5.3.93")9") Wide Dynamic Range SSDR (Off / On) MONITOR
Contrast Enhancement SSNR IV (Off / On)
Digital Noise Reduction Off / Auto / Manual
Defog Off / Low / Middle / High
Purple Fringe Reduction Off / On
Digital Image Stabilization Off / On
Tampering Off / On
Motion Detection Fence, (Dis)Appear, Counting (Off / On)
Intelligent Video Analytics Off / On (24 programmable zones with 4 points polygonal masking)
Privacy Masking Off / Low / Middle / High
Gain Control ATW / Outdoor / Indoor / Manual / AWC / Mercury (1,800K° ~ 10,500K°)
White Balance 1sec ~ 1/12,000sec
Electronic Shutter Speed Off / On (1x ~ 16x)
Digital Zoom Off / H-Rev / V-Rev / HV-Rev
Reverse Basic, Day & Night, Backlight, ITS, Indoor, User
Profile 1 Out
Alarm Coaxial control (SPC-300 compatible)
Communication
Protocol Coax : Pelco-C (Coaxitron)
RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE
IR Distance 30m (98.43ft) (IR LED 12ea) CONTROLLER
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Ingress Protection IP66
Accessories (Optional) Vandal Resistance IK10
SBP-301HM2 SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300B SBP-300PM SBP-300KM Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10%) Access Control
System
Power Consumption TBD
Mechanical
Color / Material Ivory / Aluminum
Dimensions (WxH) Ø137.0 x 106.1mm (Ø5.39" x 4.18")
Weight TBD
