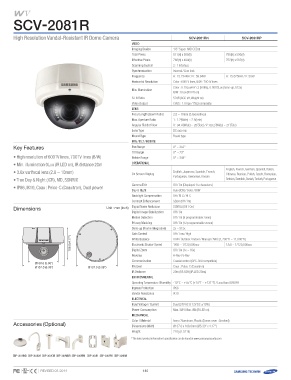

P. 140
-2081R
High Resolution Vandal-Resistant IR Dome Camera SCV-2081RN SCV-2081RP
Video
Imaging Device 1/3" Super HAD CCD II 795(H) x 596(V)
Total Pixels 811(H) x 508(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 600TV lines, B/W : 700TV lines
Min. Illumination Color : 0.15Lux@F1.2 (50IRE), 0.0003Lux (Sens-up, 512x)
B/W : 0Lux (IR LED on)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 2.8 ~ 10mm (3.6x) varifocal
Max. Aperture Ratio 1 : 1.2(Wide) ~ 2.8(Tele)
Angular Field of View H : 94.4˚(Wide) ~ 28˚(Tele) / V : 69.2˚(Wide) ~ 21˚(Tele)
Lens Type DC auto iris
Mount Type Board type
Key Features Pan / Tilt / Rotate 0° ~ 352°
• High resolution of 600TV lines, 700TV lines (B/W) Pan Range 0° ~ 73°
Tilt Range 0° ~ 348°
Rotate Range
• Min. illumination 0Lux (IR LED on), IR distance 20m Operational English, Japanese, Spanish, French, English, French, German, Spanish, Italian,
• 3.6x varifocal lens (2.8 ~ 10mm) Portuguese, Taiwanese, Korean Chinese, Russian, Polish, Czech, Romanian,
• True Day & Night (ICR), MD, SSNRIII On Screen Display Serbian, Swedish, Danish, Turkish, Portuguese
• IP66, IK10, Coax : Pelco-C (Coaxitron), Dual power Off / On (Displayed 15 characters)
Camera Title Auto (ICR) / Color / B/W
Day & Night
Backlight Compensation Off / BLC / HLC
Contrast Enhancement SSDR (Off / On)
Dimensions Unit : mm (inch) Digital Noise Reduction SSNRIII (Off / On)
Digital Image Stabilization Off / On
Ø137.0 (5.39") Motion Detection Off / On (8 programmable zones)
Privacy Masking Off / On (12 programmable zones)
Sens-up (Frame Integration) 2x ~ 512x
10106.60( (4.41.71")7") Gain Control Off / Low / High
106 (4.17") White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Electronic Shutter Speed 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Digital Zoom Off / On (1x ~ 16x)
Reverse H-Rev / V-Rev
Ø10Ø01.000.(03.(93.39"3)”) ØØ113377..00 ((55..3399"") ) Communication Coaxial control (SPC-300 compatible)
Ø1Ø3713.07.(05(.53.939"")) Protocol Coax : Pelco-C (Coaxitron)
IR Distance 20m (65.62ft) (IR LED 20ea)
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Ingress Protection IP66
Vandal Resistance IK10
Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10%)
Ø100.0 (3.93”) Power Consumption Max. 3W / Max. 4W (IR LED on)
Ø137.0 (5.39") Mechanical
Color / Material Ivory / Aluminum, Plastic (Dome cover : Smoked)
Accessories (Optional) Dimensions (WxH) Ø137.0 x 106.0mm (Ø5.39" x 4.17")
Weight 710g (1.57 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
SBP-301HM2 SBP-300LM SBP-300CM SBP-300WM1 SBP-300WM SBP-300B SBP-300PM SBP-300KM 140
REVISED 03-2014
