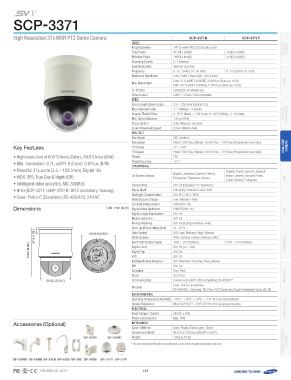

High Resolution 37x WDR PTZ Dome Camera SCP-3371N SCP-3371P
Video 1/4" Ex-view HAD CCD (Double scan) NETWORK
Imaging Device Camera
Total Pixels 811(H) x 508(V) 795(H) x 596(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 600TV lines, B/W : 700TV lines
Min. Illumination Color : 0 .7Lux@F1.6 (50IRE), 0.001Lux (Sens-up, 512x) NVR
B/W : 0 .07Lux@F1.6 (50IRE), 0.0001Lux (Sens-up, 512x)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3.5 ~ 129.5mm (Optical 37x) NETWORK
PERIPHERAL
Max. Aperture Ratio 1 : 1.6(Wide) ~ 3.9(Tele)
Angular Field of View H : 55.5°(Wide) ~ 1.59°(Tele) / V : 42.5°(Wide) ~ 1.19°(Tele)
Min. Object Distance 1.8m (5.91ft)
Focus Control Auto / Manual / One shot
Zoom Movement Speed 2.8sec (Wide to tele)
Pan / Tilt
Pan Range 360° Endless Analogue
Camera
Pan Speed Preset : 500°/sec, Manual : 0.024°/sec ~ 120°/sec (Proportional zoom ratio)
Key Features Tilt Range -5° ~ 185°
• High resolution of 600TV lines (Color), 700TV lines (B/W) Tilt Speed Preset : 500°/sec, Manual : 0.024°/sec ~ 120°/sec (Proportional zoom ratio)
• Min. illumination 0.7Lux@F1.6 (Color), 0.07Lux (B/W)
• Powerful 37x zoom (3.5 ~ 129.5mm), Digital 16x Preset 255
• WDR, VPS, True Day & Night (ICR)
• Intelligent video analytics, MD, SSNRIII Preset Accuracy ±0.1°
• IK10 (SCP-3371+SHP-3701H : IK10 accessory housing)
• Coax : Pelco-C (Coaxitron), RS-485/422, 24V AC Operational
On Screen Display English, Japanese, Spanish, French, English, French, German, Spanish, DVR
Portuguese, Taiwanese, Korean Italian, Chinese, Russian, Polish,
Czech,Turkish, Portuguese
Camera Title Off / On (Displayed 12 characters)
Day & Night Auto (ICR) / External / Color / B/W
Backlight Compensation Off / BLC / HLC / WDR
Wide Dynamic Range Low / Medium / High
Dimensions Unit : mm (inch) Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNRIII (Off / On) LENS
Digital Image Stabilization Off / On
Motion Detection Off / On
Privacy Masking Off / On (8 programmable zones)
21281.8.00((88..558"8)") Sens-up (Frame Integration) 2x ~ 512x
27.62 (7.16.(01.90"9)")
ØØ115522..00(5(5.9.89")8") Gain Control Off / Low / Medium / High / Manual
White Balance ATW / Outdoor / Indoor / Manual / AWC PERIPHERAL
Electronic Shutter Speed 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Digital Zoom Off / On (1x ~ 16x)
Digital Flip Off / On
VPS Off / On
Intelligent Video Analytics Off / Detection / Tracking / Fixed_Moved
PIP Off / On
Schedule Day / Time MONITOR
Alarm 8 In 3 Out
Ø1Ø3133.32.2(5(5..2244")") Communication Coaxial control (SPC-300 compatible), RS-485/422
Protocol Coax : Pelco-C (Coaxitron)
RS-485/422 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH CONTROLLER
Vandal Resistance When SCP-3371 + SHP-3701H : IK10 accessary housing
Electrical
Input Voltage / Current 24V AC ±10%
Power Consumption Max. 15W
Accessories (Optional) Mechanical
Color / Material Ivory / Plastic (Dome cover : Clear)
Dimensions (WxH) Ø152.0 x 218.0mm (Ø5.98" x 8.58") Access Control
System
SBP-300PM SBP-301HM3 Weight 1.6Kg (3.53 lb)
