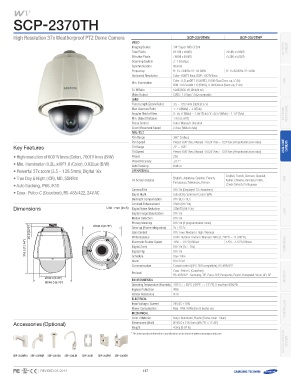

High Resolution 37x Weatherproof PTZ Dome Camera SCP-2370THN SCP-2370THP
Video 1/4" Super HAD CCD II 795(H) x 596(V) NETWORK
Imaging Device 811(H) x 508(V) 752(H) x 582(V) Camera
Total Pixels
Effective Pixels 768(H) x 494(V)
Scanning System 2 : 1 Interlace
Synchronization Internal H : 15.625KHz / V : 50Hz
Frequency H : 15.734KHz / V : 59.94Hz
Horizontal Resolution Color : 600TV lines, B/W : 700TV lines
Min. Illumination Color : 0 .2Lux@F1.6 (50IRE), 0.0004Lux (Sens-up, 512x) NVR
B/W : 0 .02Lux@F1.6 (50IRE), 0.00004Lux (Sens-up, 512x)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3.5 ~ 129.5mm (Optical 37x) NETWORK
Max. Aperture Ratio 1 : 1.6(Wide) ~ 3.9(Tele) PERIPHERAL
Angular Field of View H : 55.5°(Wide) ~ 1.59°(Tele) / V : 42.5°(Wide) ~ 1.19°(Tele)
Min. Object Distance 1.8m (5.91ft)
Focus Control Auto / Manual / One shot
Zoom Movement Speed 2.8sec (Wide to tele)
Pan / Tilt 360° Endless Analogue
Pan Range Preset : 600°/sec, Manual : 0.024°/sec ~ 120°/sec (Proportional zoom ratio) Camera
Pan Speed
Key Features Tilt Range -5° ~ 185°
Tilt Speed Preset : 600°/sec, Manual : 0.024°/sec ~ 120°/sec (Proportional zoom ratio)
• High resolution of 600TV lines (Color), 700TV lines (B/W)
• Min. illumination 0.2Lux@F1.6 (Color), 0.02Lux (B/W) Preset 255
• Powerful 37x zoom (3.5 ~ 129.5mm), Digital 16x
• True Day & Night (ICR), MD, SSNRIII Preset Accuracy ±0.1°
• Auto tracking, IP66, IK10 Auto Tracking Built-in
• Coax : Pelco-C (Coaxitron), RS-485/422, 24V AC
Operational
On Screen Display English, Japanese, Spanish, French, English, French, German, Spanish, DVR
Portuguese, Taiwanese, Korean Italian, Chinese, Russian, Polish,
Czech,Turkish, Portuguese
Camera Title Off / On (Displayed 12 characters)
Day & Night Auto (ICR) / External / Color / B/W
Dimensions Unit : mm (inch) Backlight Compensation Off / BLC / HLC LENS
Contrast Enhancement SSDR (Off / On)
31316.6.55( (1122..4466"")) Ø224488..00((99..7766")") Digital Noise Reduction SSNRIII (Off / On)
202.0.00( (0.0.7799"")) Digital Image Stabilization Off / On
Motion Detection Off / On
Privacy Masking Off / On (8 programmable zones)
Sens-up (Frame Integration) 2x ~ 512x PERIPHERAL
Gain Control Off / Low / Medium / High / Manual
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Electronic Shutter Speed 1/60 ~ 1/120,000sec 1/50 ~ 1/120,000sec
Digital Zoom Off / On (1x ~ 16x)
Digital Flip Off / On
Schedule Day / Time
Alarm 8 In 3 Out
Communication Coaxial control (SPC-300 compatible), RS-485/422
Protocol Coax : Pelco-C (Coaxitron) MONITOR
RS-485/422 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE
Ø116622..00 ((66..3388""))
Ø224488.0.0(9(9.7.766")") Environmental
Accessories (Optional) Operating Temperature / Humidity -50°C ~ +55°C (-58°F ~ +131°F) / Less than 90% RH
Ingress Protection IP66
Vandal Resistance IK10
Electrical 24V AC ±10% CONTROLLER
Input Voltage / Current
Power Consumption Max. 15W / 60W (Fan & heater on)
Mechanical Ivory / Aluminum, Plastic (Dome cover : Clear)
Color / Material
Dimensions (WxH) Ø248.0 x 316.5mm (Ø9.76" x 12.46")
Weight 4.5Kg (9.92 lb)
