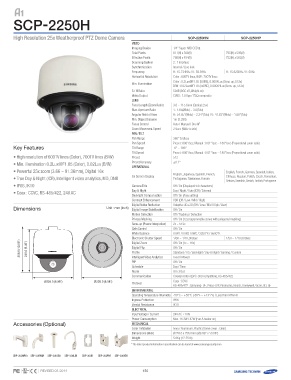

High Resolution 25x Weatherproof PTZ Dome Camera SCP-2250HN SCP-2250HP
Video
Imaging Device 1/4" Super HAD CCD II 795(H) x 596(V)
Total Pixels 811(H) x 508(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Scanning System 2 : 1 Interlace
Synchronization Internal / Line lock
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 600TV lines, B/W : 700TV lines
Min. Illumination Color : 0.2Lux@F1.65 (50IRE), 0.0004Lux (Sens-up, 512x)
B/W : 0 .02Lux@F1.65 (50IRE), 0.00004Lux (Sens-up, 512x)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3.6 ~ 115.6mm (Optical 25x)
Max. Aperture Ratio 1 : 1.65(Wide) ~ 3.0(Tele)
Angular Field of View H : 54.95°(Wide) ~ 2.24°(Tele) / V : 41.83°(Wide) ~ 1.68°(Tele)
Min. Object Distance 1m (3.28ft)
Focus Control Auto / Manual / One AF
Zoom Movement Speed 2.9sec (Wide to tele)
Pan / Tilt
Pan Range 360° Endless
Key Features Pan Speed Preset : 600°/sec, Manual : 0.01°/sec ~ 180°/sec (Proportional zoom ratio)
• High resolution of 600TV lines (Color), 700TV lines (B/W) Tilt Range -6° ~ 186°
• Min. illumination 0.2Lux@F1.65 (Color), 0.02Lux (B/W)
• Powerful 25x zoom (3.66 ~ 91.36mm), Digital 16x Tilt Speed Preset : 600°/sec, Manual : 0.01°/sec ~ 180°/sec (Proportional zoom ratio)
• True Day & Night (ICR), Intelligent video analytics, MD, DNR
• IP66, IK10 Preset 512
• Coax : CCVC, RS-485/422, 24V AC
Preset Accuracy ±0.1°
Operational
On Screen Display English, Japanese, Spanish, French, English, French, German, Spanish, Italian,
Portuguese, Taiwanese, Korean Chinese, Russian, Polish, Czech, Romanian,
Serbian, Swedish, Danish, Turkish, Portuguese
Camera Title Off / On (Displayed 54 characters)
Day & Night Day / Night / Auto (ICR) / External
Backlight Compensation Off / On (Area setting)
Contrast Enhancement XDR (Off / Low / Mid / High)
Dimensions Unit : mm (inch) Digital Noise Reduction Adaptive 3D+2D (Off / Low / Mid / High / User)
Digital Image Stabilization Off / On
Motion Detection Off / Tracking / Detection
Privacy Masking Off / On (12 programmable zones with polygonal masking)
Sens-up (Frame Integration) 2x ~ 512x
Gain Control Off / On
White Balance ATW1 / ATW2 / AWC / 3200°K / 5600°K
225566..00 ((110.0.008"8)") Electronic Shutter Speed 1/60 ~ 1/10,000sec 1/50 ~ 1/10,000sec
22440.0.00 ((99..4455")")
Digital Zoom Off / On (1x ~ 16x)
Digital Flip Off / On
Profile Standard / ITS / Backlight / Day & Night / Gaming / Custom
Intelligent Video Analytics Fixed / Moved
PIP Off / On
Schedule Day / Time
Alarm 8 In 3 Out
Communication Coaxial control (SPC-300 compatible), RS-485/422
ØØ222288..00 ((88.9.988")") Ø2Ø22828.0.0((88..9988"")) Protocol Coax : CCVC
RS-485/422 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE
Environmental
Operating Temperature / Humidity -50°C ~ +55°C (-58°F ~ +131°F) / Less than 90% RH
Ingress Protection IP66
Vandal Resistance IK10
Electrical
Input Voltage / Current 24V AC ±10%
Power Consumption Max. 16.3W / 47W (Fan & heater on)
Accessories (Optional) Mechanical
Color / Material Ivory / Aluminum, Plastic (Dome cover : Clear)
Dimensions (WxH) Ø228.0 x 256.0mm (Ø8.98" x 10.08")
Weight 5.6Kg (12.35 lb)
* The latest product information / specification can be found at www.samsungsecurity.com
